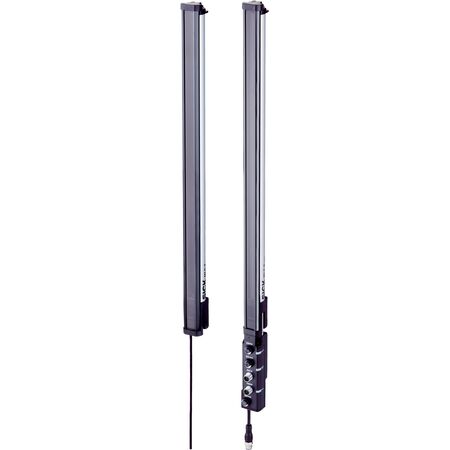

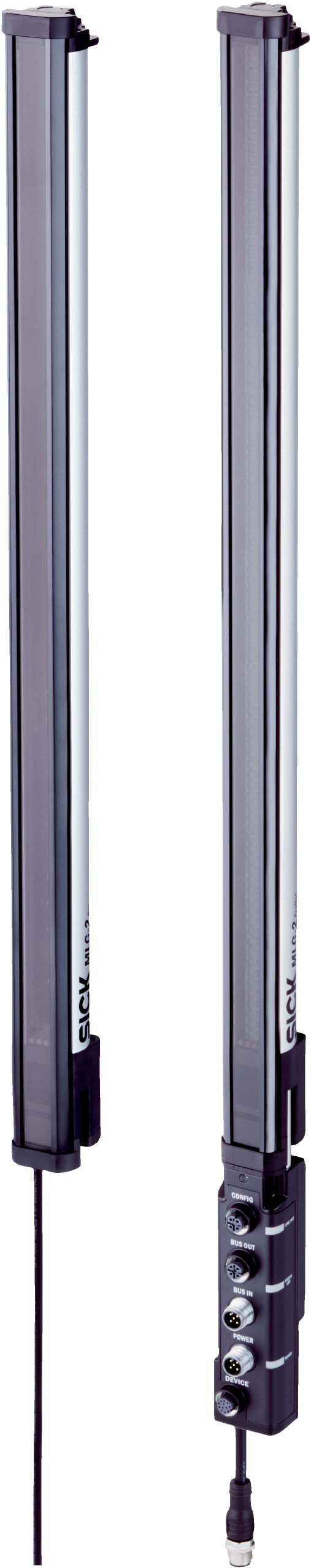

Safety Light Curtain MLG20N-2680C10501 | 135 Beams | IP65 & IP67 Rated | by SICK
The Safety Light Curtain MLG20N-2680C10501 features 135 beams with a 20 mm separation and a detection height of 2,680 mm, making it ideal for precise object detection and classification in industrial automation. With its robust IP65 and IP67 rated enclosure, this curtain ensures reliable performance in dust and sunlight conditions, perfect for enhancing safety in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device version: ProNet with extended functionality including fieldbus
- Sensor principle: Sender/receiver
- Minimum detectable object: 20 mm
- Number of beams: 135
- Detection height: 2,680 mm
- Operating mode: Standard, Transparent, Dust- and sunlight-resistant
- Light source: LED, Infrared light at 850 nm wavelength
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 61.75 mA
- Power consumption receiver: 147 mA
- Fieldbus module current consumption: 115 mA
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: less than 1 second
- Switching output: Push-pull PNP/NPN
- Connection type: Plug M12 5-pin and 12-pin connectors
- Housing material: Aluminum
- Display: LED
- Enclosure rating: IP65, IP67
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Maximum range: 7 m
- Operating range: 5 m
- Response time: 11.7 ms
- Interfaces: CANopen with data transmission rate 10 kbit/s to 1 Mbit/s
- Digital output: 1 (Q1)
- Dimensions (H x L x W): 2680mm x 80mm x 1000mm
- Weight: 5.65 kg
Key Features
- ProNet extended functionality including fieldbus
- 135 beams with 20 mm beam separation
- Detection height of 2,680 mm
- Dust- and sunlight-resistant operation
- High-speed scan with high measurement accuracy
- Cross beam and beam blanking functions
- LED infrared light source with 850 nm wavelength
- IP65 and IP67 rated enclosure for robust protection
- Push-pull PNP/NPN switching output
- Cable synchronization type
- CANopen interface with data transmission rate 10 kbit/s to 1 Mbit/s
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with safety light curtains and industrial automation systems to ensure compliance with safety standards and optimal performance.
Applications
- Object detection and object width measurement
- Object recognition and height classification
- Hole detection and hole size measurement
- Outside and inside dimension measurement
- Object and hole position measurement
- Zone definition for safety and automation
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
- High measurement accuracy minimizes errors and material waste in automation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MLG20N-2680C10501 safety light curtain is available for immediate purchase, ideal for industrial automation and safety applications requiring precise object detection and classification.
