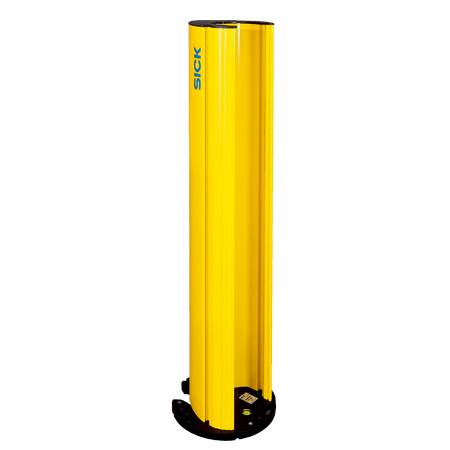

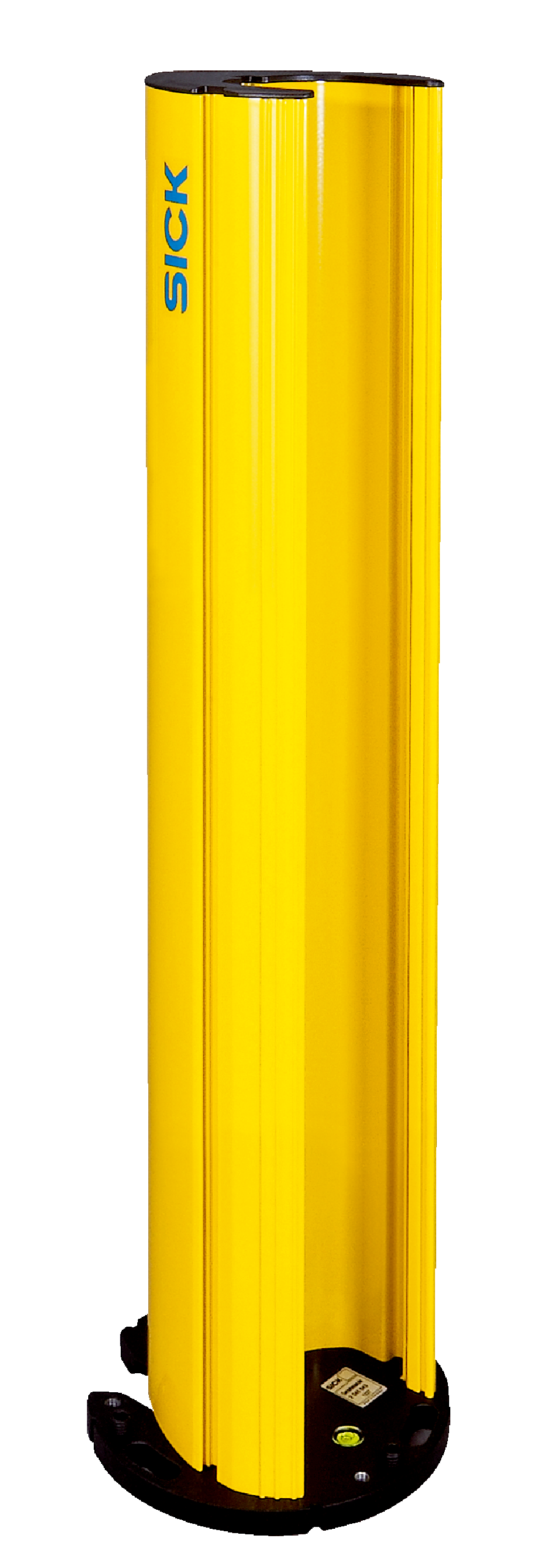

Safety Light Curtain Mounting Column | Robust Aluminum Construction | Mechanical Anchoring | by SICK
The Safety Light Curtain Mounting Column is designed for industrial safety applications, featuring a robust aluminum construction that protects devices from mechanical influences. With a maximum installation length of 1,550 mm and compatibility with various mounting brackets, this column ensures secure and reliable operation of safety sensors, making it ideal for environments requiring durable and effective mounting solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Safety Light Curtain Mounting Column, Protective Device Column, Safety Sensor Mounting Post
Technical Specifications
- Material: Aluminum column profile and base plate with powder coating, ABS end cap
- Column height: 1,570 mm
- Maximum installation length: 1,550 mm
- Cross-section of column profile: 138.4 mm x 134.7 mm
- Diameter of base plate: 180 mm
- Weight: 10.45 kg
- Mounting system type: Mechanical anchoring to the floor
- Compatible with multiple bracket types including FlexFix, QuickFix, Flat-Mount, Swivel-Mount, Omega bracket
- Supports additional accessories such as muting arms
- Dimensions (H x L x W): 1570mm x 1550mm x 138mm
- Weight: 10.45 kg
Key Features
- Robust device column with two external mounting slots
- Maximum installation length 1,550 mm
- Column height 1,570 mm
- Protects devices from mechanical influences from three sides
- Mechanical anchoring to the floor
- Compatible with FlexFix, QuickFix, Flat-Mount, Swivel-Mount, and Omega brackets
- Enables installation of additional accessories such as muting arms
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mechanical anchoring and proper integration with safety light curtains and sensors.
Applications
- Mounting suitable safety light curtains and safety light-beam sensors in industrial safety applications
- Protection of safety devices from mechanical influences from three sides
- Use in environments requiring robust mechanical anchoring to the floor
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum construction with powder coating extends product life and reduces waste
- Enables safe and reliable operation of safety sensors, contributing to workplace safety and reduced accident-related environmental impact
Warranty Information
Warranty information available upon request from manufacturer.
Available Now
The SICK PU3H15-00000000 protective device column is available for immediate purchase, ideal for industrial safety applications requiring robust mounting solutions.
