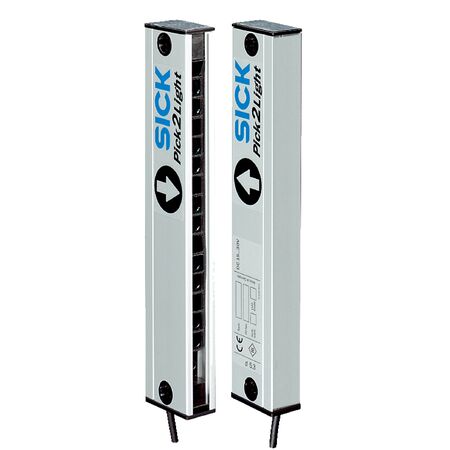

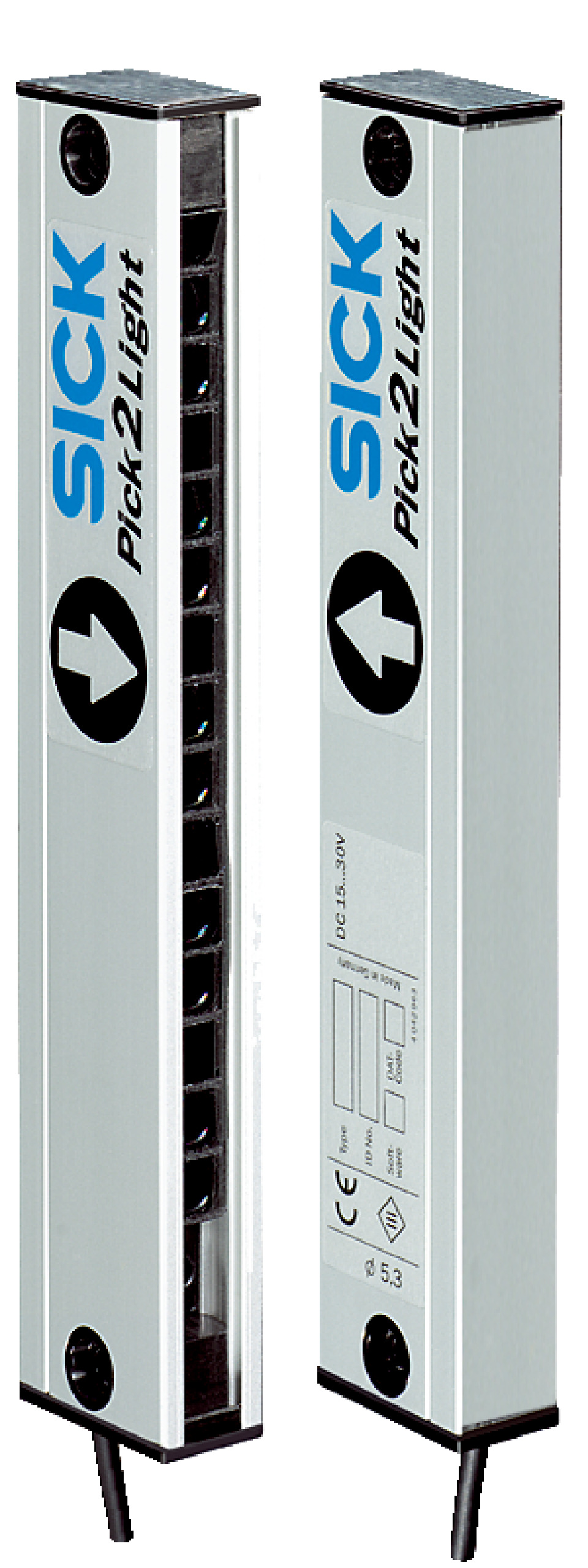

Safety Light Curtain PLG3-810F430S03 | 28 Beams & 30mm Separation | IP54 Rated | by SICK
The Safety Light Curtain PLG3-810F430S03 features 28 parallel beams with a 30 mm beam separation, ensuring reliable detection at a height of 810 mm. With an impressive operating range of 1.3 m and a fast response time under 100 ms, this curtain is perfect for industrial automation safety and machine guarding. Its robust aluminum housing and IP54 rating provide durability in demanding environments, making it an essential choice for access protection in manufacturing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Light Curtain PLG3-810F430S03 | 28 Beams & 30mm Separation | IP54 Rated | by SICK
Brand: SICK
SKU: 1044085
Alternatively Known As: Safety Light Curtain, Industrial Safety Sensor, Machine Guard Light Curtain
Technical Specifications
- Minimum detectable object: 35 mm
- Beam separation: 30 mm
- Number of beams: 28
- Detection height: 810 mm
- Wavelength: 650 nm
- Supply voltage: DC 15 V to 30 V
- Power consumption sender: < 80 mA
- Ripple: < 5 V pp
- Output current max: ≤ 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: 0.6 s
- Switching output: PNP
- Output mode: Q dark switching
- Connection type: Cable with M12 male connector, 4-pin, 280 mm
- Housing material: Aluminum
- Indication: LED
- Enclosure rating: IP54
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Front screen material: PMMA
- Maximum range: 2 m
- Minimum range: ≥ 110 mm
- Operating range: 1.3 m
- Response time: < 100 ms
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC: EN 60947-5-2
- Ambient operating temperature: –10 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 880mm x 37mm x 19mm
- Weight: 1.3 kg
Key Features
- 28 parallel beams with 30 mm beam separation
- Detection height of 810 mm
- Operating range of 1.3 m with maximum range of 2 m
- Fast response time under 100 ms
- Robust aluminum housing with IP54 rating
- LED indication for operational status
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure compliance with safety standards and optimal performance.
Applications
- Industrial automation safety
- Machine guarding
- Access protection in manufacturing environments
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient operation with low power consumption
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK PLG3-810F430S03 Safety Light Curtain is available for immediate purchase, ideal for industrial safety and machine guarding applications.
