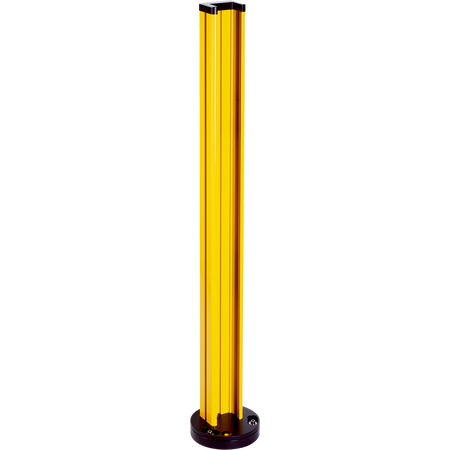

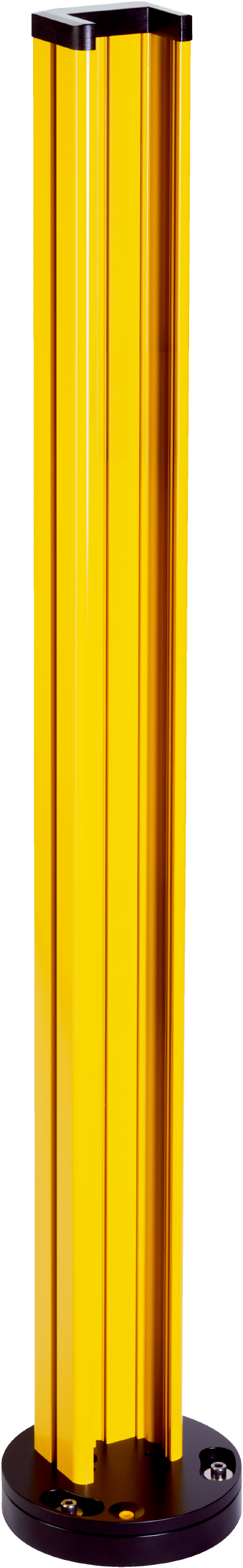

Safety Light Curtain Protective Column | Aluminum Construction | Pre-Assembled Alignment Plate | Compatible with Multiple Mounts | by SICK
The Safety Light Curtain Protective Column is designed to securely mount and protect deTec safety light curtains and sensors in industrial environments. With a robust aluminum construction and a pre-assembled alignment plate, it ensures stable installation and precise leveling. Ideal for applications requiring mechanical protection, this column supports various mounting options and enhances workplace safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Safety Light Curtain Protective Column, Sensor Mounting Column, Safety Sensor Protective Post
Technical Specifications
- Column height: 1710.5 mm
- Material: Aluminum (powder-coated) for column profile, alignment plate, and base plate; PA6 for fine alignment wheel and alignment clamp; ABS for end cap
- Base plate diameter: 195 mm
- Cross-section of column profile: 101.6 mm x 81 mm
- Weight: approximately 7.98 kg
- Storage temperature range: -30 °C to +70 °C
- Includes pre-assembled alignment plate, removable end cap, base plate with spirit level, fine alignment wheel, setscrews, M8 screws and washers
- Height of first beam above ground: 200 mm
- Compatible with FlexFix, Flat-Mount, and Swivel-Mount brackets
- Supports additional accessories such as muting sensor protections and muting arm adapter
- Dimensions (H x L x W): 1711mm x 195mm x 102mm
- Weight: 8 kg
Key Features
- Protects devices from mechanical influences from three sides
- Mechanical anchoring to the floor for stable installation
- Includes pre-assembled alignment plate and removable end cap
- Base plate with spirit level, fine alignment wheel, and setscrews for precise leveling
- Compatible with FlexFix, Flat-Mount, and Swivel-Mount brackets
- Supports additional accessories such as muting arms and sensor protections
- Cable entry provided for neat wiring
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper mechanical anchoring and alignment for optimal safety performance.
Applications
- Mounting and protecting deTec safety light curtains with protective field height up to 1,500 mm
- Mounting and protecting deTem safety light-beam sensors
- Industrial safety installations requiring mechanical protection of sensors
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum construction with powder coating ensures long product life and reduces waste
- Enables safe and reliable operation of safety sensors, contributing to workplace safety and accident prevention
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK PP4 Protective Column is available for immediate purchase, ideal for industrial safety applications requiring robust protection and precise mounting of safety light curtains and sensors.
