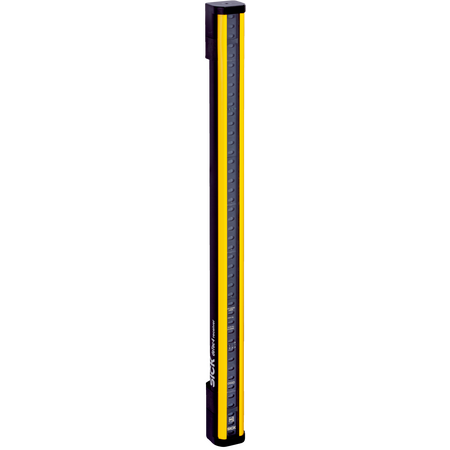

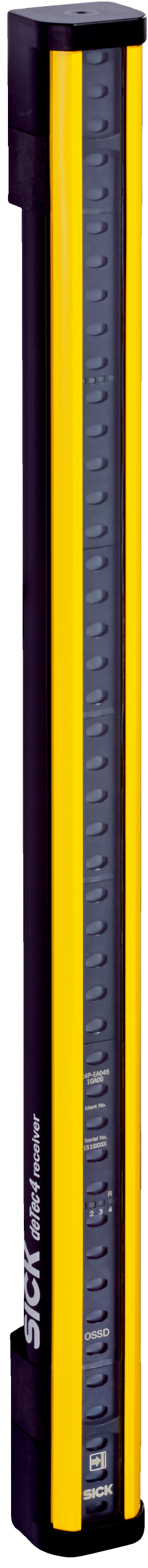

Safety Light Curtain Receiver | 30m Scanning Range | 1800mm Protective Field | Type 4 Safety | by SICK
The Safety Light Curtain Receiver is designed for industrial safety applications, featuring a 30m scanning range and a protective field height of 1800mm. With a rapid response time of 13 ms and no blind zones, it ensures optimal machine safeguarding and personnel protection in normal industrial environments. Built to meet Type 4 safety standards, this reliable sensor is perfect for enhancing workplace safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Safety light curtain receiver, industrial safety sensor, deTec4 safety light barrier
Technical Specifications
- Dimensions (H x L x W): 1800mm x 40mm x 50mm
- Weight: 3 kg
Key Features
- Resolution of 30 mm with a scanning range of 30 m
- Protective field height of 1,800 mm
- Response time of 13 ms (Uncoded) and 24 ms (code 1 or code 2)
- No blind zones with optical synchronization
- Type 4 safety according to IEC 61496-1
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (ISO 13849-1) with Performance level PL e
- Automatic calibration of protective field width
- Beam coding and restart interlock
- External device monitoring (EDM) and cascading capability
- Smart presence detection and dynamic protective field width
- Differentiation between person and material with 2-signal muting
- LED display elements with synchronization status indication
- IO-Link and Near Field Communication (NFC) support
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure compliance with safety standards and proper system integration.
Applications
- Normal industrial environment for safety light curtain applications
- Machine safeguarding and personnel protection in industrial settings
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum extruded profile housing for long product life
- Low power consumption typical at 3.89 W
- High reliability reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK C4P-EA18031C00 deTec4 Receiver Safety Light Curtain is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
