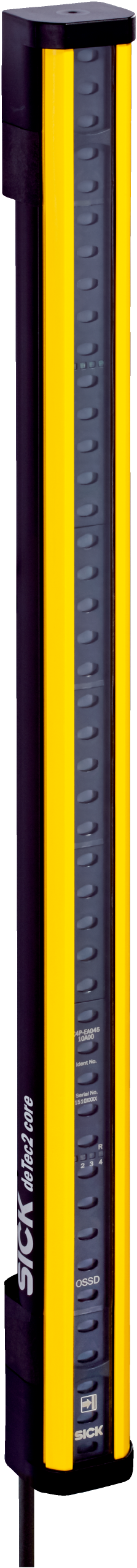

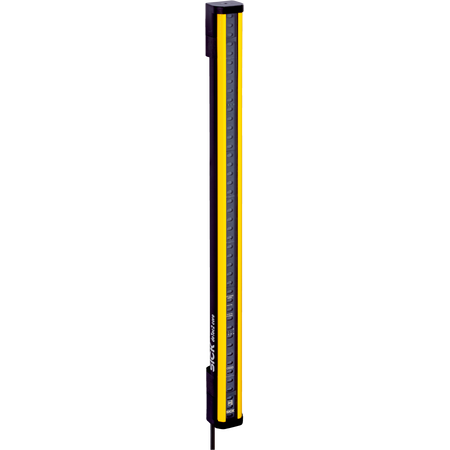

Safety Light Curtain Receiver C2C-EA09030A10000 | IP65 & IP67 Rated | 30mm Resolution | 15m Scanning Range | by SICK
The Safety Light Curtain Receiver C2C-EA09030A10000 is designed for industrial safety applications, featuring a 30mm resolution and a scanning range of 15m. With a protective field height of 900mm and robust IP65/IP67 enclosure ratings, it ensures reliable machine safeguarding and access protection in normal industrial environments. Built for durability and low power consumption, this safety sensor is ideal for enhancing workplace safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Safety light curtain receiver, industrial safety sensor, machine safety light barrier
Technical Specifications
- Type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (ISO 13849-1)
- Performance level: PL c (ISO 13849-1)
- PFHD: 31 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD is OFF
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Power consumption: 2.02 W typical
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Response time: 11 ms
- Enclosure rating: IP65 and IP67
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Cable: M12, 5-pin plug, 150 mm length, 4.3 mm diameter
- Dimensions (H x L x W): 900mm x 40mm x 50mm
- Weight: 1.5 kg
Key Features
- Resolution of 30 mm with a scanning range of 15 m
- Protective field height of 900 mm
- No blind zones with optical synchronization
- Automatic calibration of the protective field width
- Response time of 11 ms
- LED display elements for status indication
- Robust aluminum extruded profile housing
- High protection rating IP65 and IP67
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and safety.
Applications
- Normal industrial environment safety monitoring
- Machine safeguarding and access protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Low power consumption of 2.02 W enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK deTec2 Core C2C-EA09030A10000 safety light curtain receiver is available for immediate purchase, ideal for industrial safety applications requiring reliable machine guarding.
