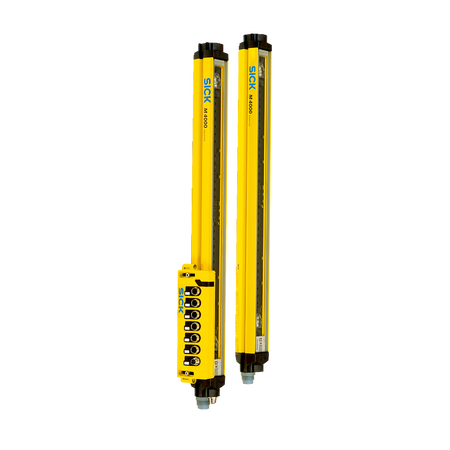

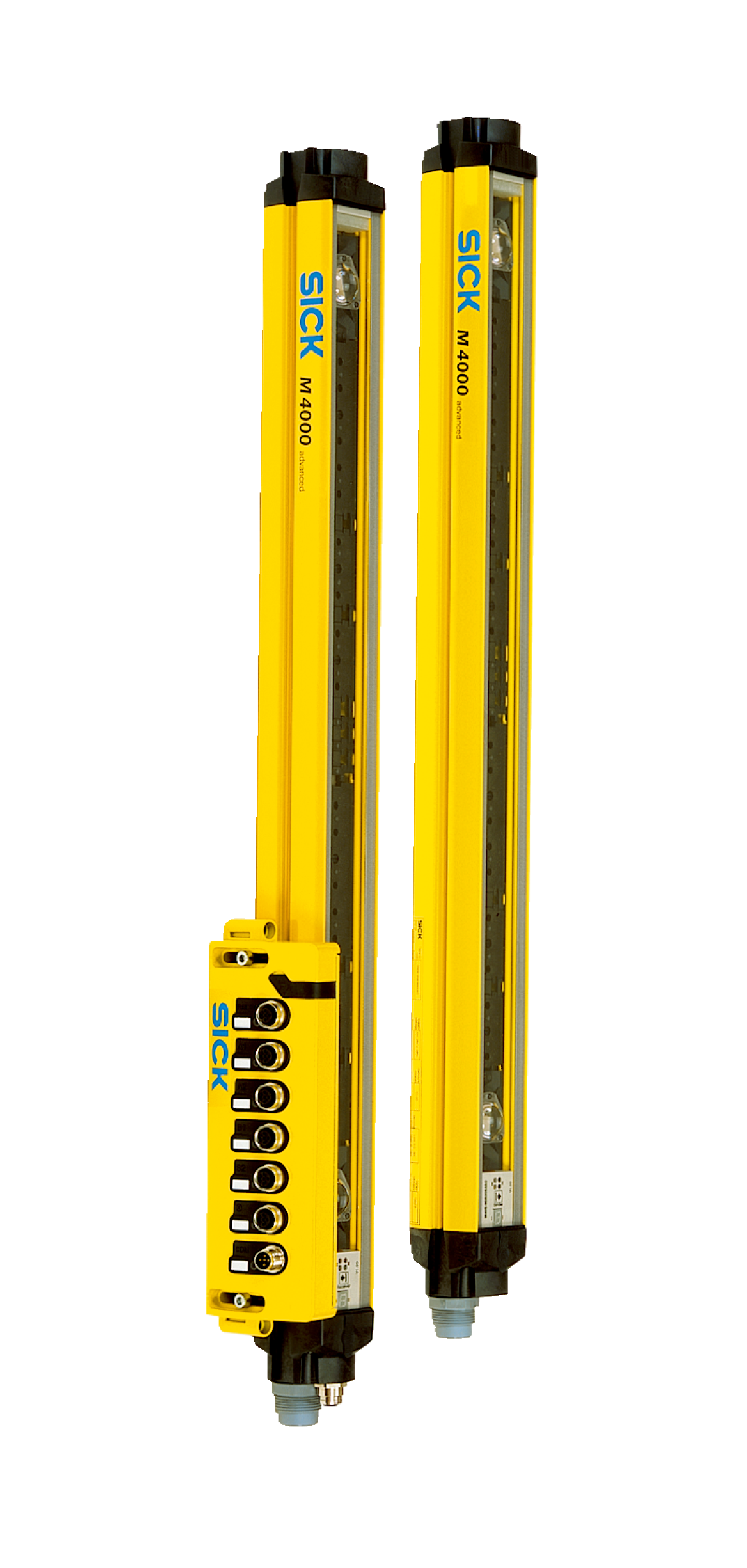

Safety Light Curtain Receiver | Configurable Scanning Range | Type 4 Safety | by SICK
The Safety Light Curtain Receiver is designed for industrial safety applications, featuring a configurable scanning range from 0.5 m to 70 m and a robust design with IP65 rating. Ideal for machine safeguarding and access control, it ensures high performance with a response time of 10 ms and SIL 3 safety integrity, making it perfect for automation and manufacturing safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Safety light curtain receiver, industrial safety sensor, machine safety light curtain
Technical Specifications
- Functional principle: Sender/receiver
- System part: Receiver
- Scanning range: 0.5 m to 70 m, configurable
- Number of beams: 4
- Beam separation: 300 mm
- Response time: 10 ms
- Synchronization: Optical synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.6 x 10^-9 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Output signal switching devices: 2 PNP semiconductors, short-circuit protected
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 0.6 A
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Material: Aluminum alloy ALMGSI 0.5, powder coated housing; polycarbonate front screen
- Dimensions (H x L x W): 55mm x 150mm x 52mm
- Weight: 1.5 kg
Key Features
- Sender/receiver functional principle with receiver system part
- Configurable scanning range from 0.5 m to 70 m
- 4 beams with 300 mm beam separation
- Response time of 10 ms with optical synchronization
- Integrated laser alignment aid and end cap with LED
- Type 4 safety (IEC 61496-1) with SIL 3 and PL e performance
- Flexible, configurable 4-signal muting for human-material differentiation
- 2 PNP semiconductor output signal switching devices (OSSDs), short-circuit protected
- LED and 7-segment display for configuration and diagnostics
- Robust aluminum alloy housing with polycarbonate scratch-resistant front screen
- IP65 rated enclosure for harsh environments
- Wide ambient operating temperature range from -30 °C to +55 °C
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with industrial safety standards and electrical systems.
Applications
- Industrial safety light curtain applications
- Machine safeguarding and access control
- Automation and manufacturing safety systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable materials and robust design reduce replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and conditions.
Available Now
The SICK M40E-043033RB0 Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
