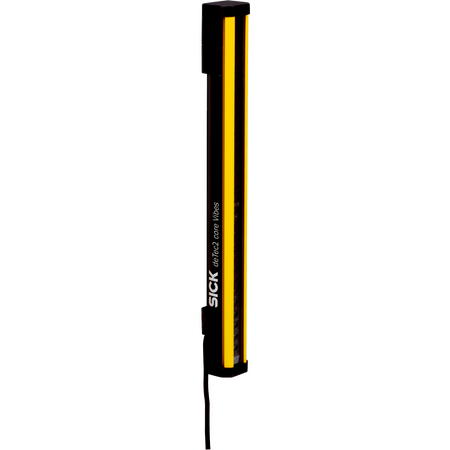

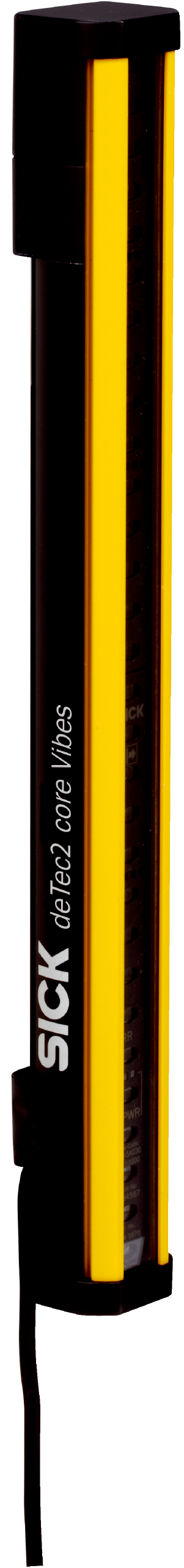

Safety Light Curtain Receiver deTec2 Core Vibes | 30mm Resolution | 6m Scanning Range | IP65 & IP67 Rated | by SICK
The Safety Light Curtain Receiver deTec2 Core Vibes is designed for machines exposed to strong shock and vibration, featuring a 30mm resolution and a scanning range of up to 6 meters. With an IP65 and IP67 enclosure rating, it ensures reliable operation in harsh environments, making it ideal for industrial applications where safety is paramount.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Safety light curtain receiver, deTec2 Core Vibes receiver, vibration resistant safety sensor
Technical Specifications
- Product version: deTec2 Core Vibes
- Type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (ISO 13849-1)
- Performance level: PL c (ISO 13849-1)
- Mean probability of dangerous failure per hour (PFHD): 31.0 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD is OFF
- System connection: Plug, M12, 5-pin with 150 mm cable length
- Cable diameter: 4.3 mm
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Power consumption typical: 1.92 W
- Output signal: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Output current per OSSD: ≤ 300 mA
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Housing material: Aluminum extruded profile
- Dimensions (H x L x W): 750mm x 100mm x 50mm
- Weight: 1.5 kg
Key Features
- Resolution of 30 mm for precise detection
- Scanning range up to 6 m
- Protective field height of 750 mm
- Response time of 11 ms
- No blind zones ensuring full coverage
- Optical synchronization for reliable operation
- LED display elements for status indication
- Robust aluminum extruded profile housing
- High vibration and shock resistance (5-150 Hz, 3.5 mm / 1 g; 15 g / 6 ms)
- Enclosure rating IP65 and IP67 for dust and water protection
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with safety light curtain systems and electrical safety standards.
Applications
- Machines with strong shock or vibration loads requiring safety light curtain protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption at 1.92 W typical reduces energy usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK deTec2 Core Vibes Safety Light Curtain Receiver C2C-EV07530C10000 is available for immediate purchase, ideal for industrial machinery requiring robust safety solutions under high vibration and shock conditions.
