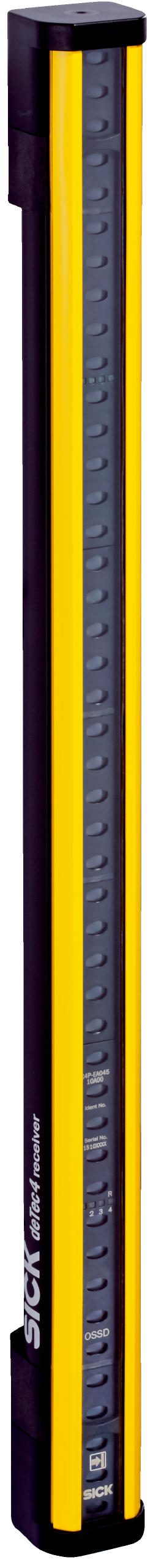

Safety Light Curtain Receiver deTec4 | 14 mm Resolution | 20 m Scanning Range | Type 4 Safety | by SICK
The Safety Light Curtain Receiver deTec4 is designed for industrial safety monitoring, featuring a 14 mm resolution and a scanning range of up to 20 m. Ideal for machine safeguarding and personnel protection, it offers no blind zones with optical synchronization and automatic calibration of protective field width, ensuring enhanced safety in normal industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Safety Light Curtain Receiver, Industrial Safety Sensor, deTec4 Receiver
Technical Specifications
- Product version: deTec4
- Resolution: 14 mm
- Scanning range: 20 m
- Protective field height: 300 mm
- Response time: 11 ms (Uncoded), 16 ms (code 1 or code 2)
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD single device: 15.3 x 10^-9
- Power supply: 24 V DC (19.2 V to 28.8 V)
- Power consumption typical: 3.43 W
- Output: 2 PNP semiconductor OSSD outputs, short-circuit protected
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Dimensions (H x L x W): 300mm x 200mm x 40mm
- Weight: 1.5 kg
Key Features
- Type 4 safety light curtain with 14 mm resolution
- Scanning range up to 20 m with 300 mm protective field height
- No blind zones with optical synchronization
- Automatic calibration of protective field width
- Beam coding and restart interlock for enhanced safety
- External device monitoring (EDM) and cascading capability
- Smart presence detection and differentiation between person and material
- 2-signal muting and Smart Box Detection
- LED display elements with synchronization status indication
- Interfaces include IO-Link and Near Field Communication (NFC)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and optimal performance.
Applications
- Normal industrial environment safety monitoring
- Machine safeguarding and personnel protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption (3.43 W typical)
- Durable aluminum housing reduces material waste and extends product life
- Complies with RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now

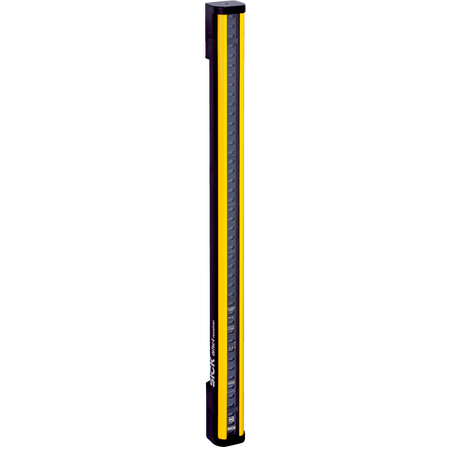

The SICK C4P-EA03011C00 deTec4 Receiver Safety Light Curtain is available for immediate purchase, ideal for industrial safety and machine guarding applications.
