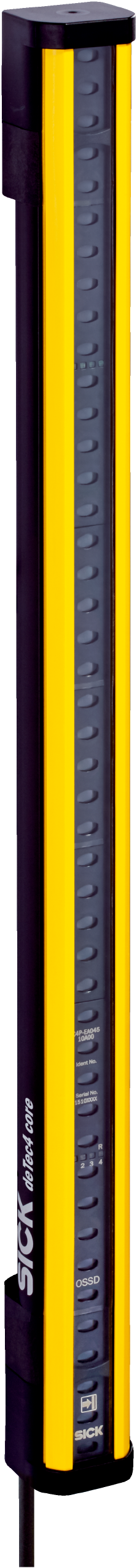

Safety Light Curtain Receiver deTec4 Core | 14 mm Resolution | 10 m Scanning Range | IP65 & IP67 Rated | by SICK
The deTec4 Core safety light curtain receiver is designed for industrial safety applications, featuring a 14 mm resolution and a scanning range of 10 m. With a protective field height of 600 mm and a short response time of 13 ms, it ensures reliable machine safeguarding and personnel protection in harsh environments. Built with a robust aluminum housing and IP65/IP67 ratings, this sensor is perfect for demanding industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Safety light curtain receiver, industrial safety sensor, deTec4 Core receiver
Technical Specifications
- Product version: deTec4 Core
- Resolution: 14 mm
- Scanning range: 10 m
- Protective field height: 600 mm
- Response time: 13 ms
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 3.7 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD OFF
- System connection: Plug, M12, 5-pin with 150 mm cable
- Power supply: 24 V DC (19.2 V to 28.8 V)
- Power consumption: 2.4 W typical
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Housing material: Aluminum extruded profile
- Dimensions (H x L x W): 600mm x 50mm x 40mm
- Weight: 1.5 kg
Key Features
- Type 4 safety light curtain receiver with 14 mm resolution
- Protective field height of 600 mm and scanning range of 10 m
- No blind zones with optical synchronization
- Automatic calibration of protective field width
- LED display elements for status indication
- Short response time of 13 ms
- High safety integrity level SIL 3 and Category 4 performance level PL e
- Robust aluminum extruded profile housing
- Protection class IP65 and IP67 for harsh environments
- Wide ambient operating temperature range from -30 °C to +55 °C
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and safety.
Applications
- Industrial safety applications in normal industrial environments
- Machine safeguarding and personnel protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Low power consumption of 2.4 W reduces energy usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

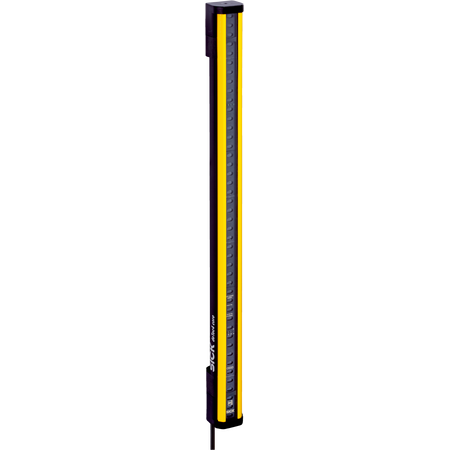

The SICK C4C-EA06010A10000 deTec4 Core safety light curtain receiver is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
