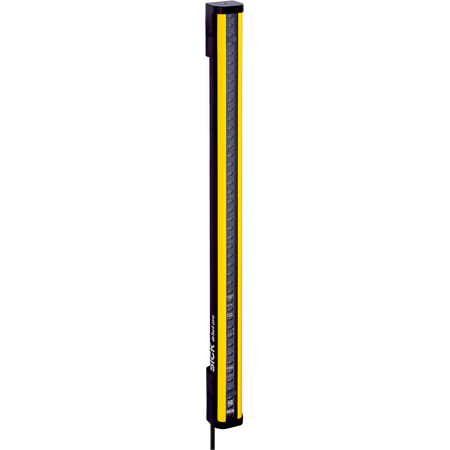

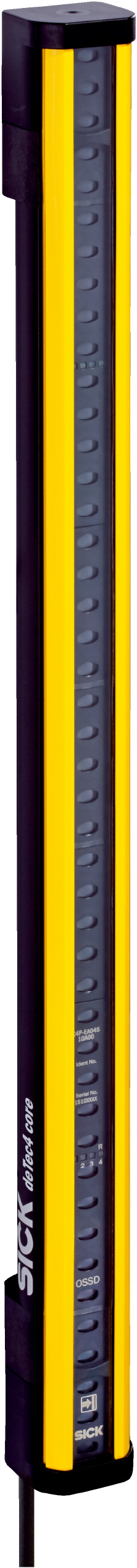

Safety Light Curtain Receiver | deTec4 Core | 14 mm Resolution | 10 m Scanning Range | by SICK
The Safety Light Curtain Receiver is designed for industrial safety applications, featuring a 14 mm resolution and a scanning range of 10 m. With a protective field height of 750 mm and a short response time of 13 ms, it ensures optimal machine safeguarding and personnel protection. Built for durability and compliance with high safety standards, this receiver is perfect for automation and manufacturing safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Safety light curtain receiver, industrial safety sensor, deTec4 Core receiver, machine safety light curtain
Technical Specifications
- Product version: deTec4 Core
- Resolution: 14 mm
- Scanning range: 10 m
- Protective field height: 750 mm
- Response time: 13 ms
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 3.7 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Power consumption: 2.64 W
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Cable length: 150 mm
- Cable diameter: 4.3 mm
- Dimensions (H x L x W): 750mm x 40mm x 50mm
- Weight: 1.5 kg
Key Features
- Type 4 safety light curtain receiver with 14 mm resolution
- Protective field height of 750 mm and scanning range of 10 m
- No blind zones with optical synchronization
- Automatic calibration of protective field width
- LED display elements for status indication
- Short response time of 13 ms
- High safety integrity level SIL 3 and performance level PL e
- Robust aluminum extruded profile housing
- Protection class III with IP65 and IP67 enclosure rating
- Wide ambient operating temperature range from -30 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and optimal safety performance.
Applications
- Industrial safety applications in normal industrial environments
- Machine safeguarding and personnel protection
- Automation and manufacturing safety systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Low power consumption of 2.64 W reduces energy usage
- Robust protection extends product lifecycle in harsh environments
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK C4C-EA07510A10000 deTec4 Core Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
