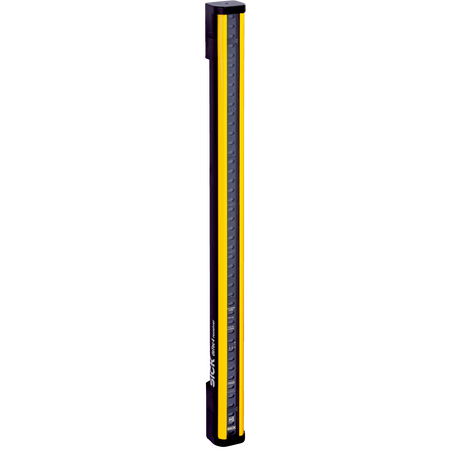

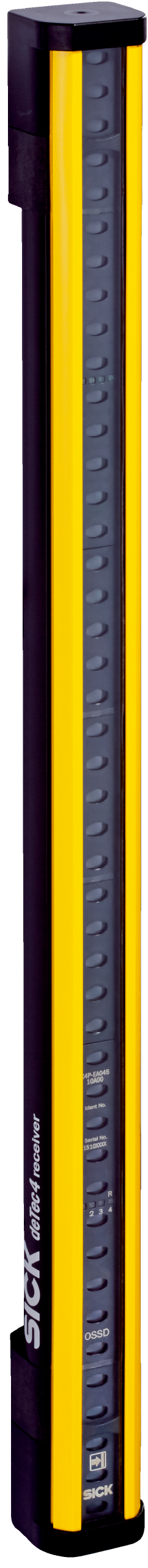

Safety Light Curtain Receiver deTec4 | Type 4 Safety | 30m Scanning Range | 1200mm Protective Height | by SICK
The Safety Light Curtain Receiver deTec4 is designed for industrial safety applications, featuring a 30m scanning range and a protective field height of 1,200mm. With Type 4 safety integrity levels (SIL 3 and PL e), it ensures reliable machine safeguarding and personnel protection. Ideal for normal industrial environments, this sensor offers smart presence detection and optical synchronization for enhanced safety control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Safety light curtain receiver, industrial safety sensor, deTec4 safety light barrier
Technical Specifications
- Product version: deTec4
- System part: Receiver
- Resolution: 30 mm
- Scanning range: 30 m
- Protective field height: 1,200 mm
- Response time: 12 ms (Uncoded), 20 ms (code 1 or code 2)
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD single device: 15.3 x 10^-9
- PFHD cascade with one guest: 30.5 x 10^-9
- PFHD cascade with two guests: 45.6 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD is OFF
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Power consumption typical: 3.63 W
- Output type: 2 PNP semiconductors, short-circuit protected
- Output current per OSSD: ≤ 500 mA
- Application diagnostic output: PNP semiconductor, short-circuit protected, ≤ 100 mA
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Housing material: Aluminum extruded profile
- Dimensions (H x L x W): 1200mm x 60mm x 40mm
- Weight: 2.5 kg
Key Features
- Type 4 safety light curtain with SIL 3 and PL e safety integrity levels
- Resolution of 30 mm and scanning range up to 30 m
- Protective field height of 1,200 mm with no blind zones
- Optical synchronization and automatic calibration of protective field width
- Features beam coding, restart interlock, external device monitoring, cascading
- Smart presence detection and differentiation between person and material
- 2-signal muting for enhanced safety control
- LED display elements with synchronization status indication
- Supports IO-Link and Near Field Communication (NFC) for configuration and diagnostics
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial safety standards and electrical installations.
Applications
- Normal industrial environment for safety light curtain applications
- Machine safeguarding and personnel protection in industrial settings
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing ensures long product life reducing waste
- Low power consumption of 3.63 W reduces energy usage
- Non-toxic materials and compliance with RoHS standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C4P-EA12031C00 deTec4 Receiver Safety Light Curtain is available for immediate purchase, ideal for industrial safety and machine guarding applications.
