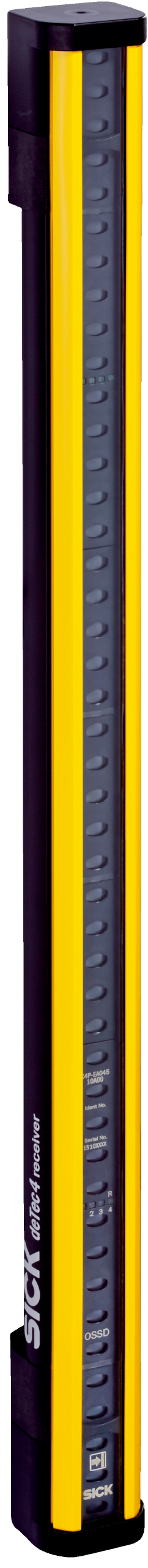

Safety Light Curtain Receiver deTec4 | 14 mm Resolution | 20 m Scanning Range | Type 4 Safety | by SICK
The Safety Light Curtain Receiver deTec4 is designed for industrial safety applications, featuring a 14 mm resolution and a scanning range of up to 20 m. With a protective field height of 750 mm and advanced features like optical synchronization and automatic calibration, it ensures reliable machine safeguarding and personnel protection in normal industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Safety light curtain receiver, industrial safety sensor, deTec4 receiver, SICK safety sensor
Technical Specifications
- Product version: deTec4
- Resolution: 14 mm
- Scanning range: 20 m
- Protective field height: 750 mm
- Response time: 13 ms (Uncoded), 25 ms (code 1 or code 2)
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD single device: 15.3 x 10^-9
- PFHD cascade with one guest: 30.5 x 10^-9
- PFHD cascade with two guest devices: 45.6 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD is OFF
- System connection: M12 male connector (5-pin or 8-pin)
- Extension connection: M12 female connector (5-pin) or none
- Configuration: DIP switch on system plug
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Power consumption typical: 3.93 W
- Output type: 2 PNP semiconductors, short-circuit protected
- Output current per OSSD: ≤ 500 mA
- Application diagnostic output: PNP semiconductor, short-circuit protected, ≤ 100 mA
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Housing material: Aluminum extruded profile
- Dimensions (H x L x W): 750mm x 100mm x 50mm
- Weight: 2.5 kg
Key Features
- Type 4 safety light curtain receiver with 14 mm resolution
- Scanning range up to 20 m with 750 mm protective field height
- No blind zones with optical synchronization
- Automatic calibration of protective field width
- Beam coding and restart interlock for enhanced safety
- External device monitoring (EDM) and cascading capability
- Smart presence detection and differentiation between person and material
- 2-signal muting and Smart Box Detection
- LED display elements with synchronization status indication
- Supports IO-Link and Near Field Communication (NFC)
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and safety.
Applications
- Normal industrial environment safety monitoring
- Machine safeguarding and personnel protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption (3.93 W typical)
- Durable aluminum housing reduces material waste and extends product life
- Supports safe machine operation reducing risk of accidents and environmental hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now

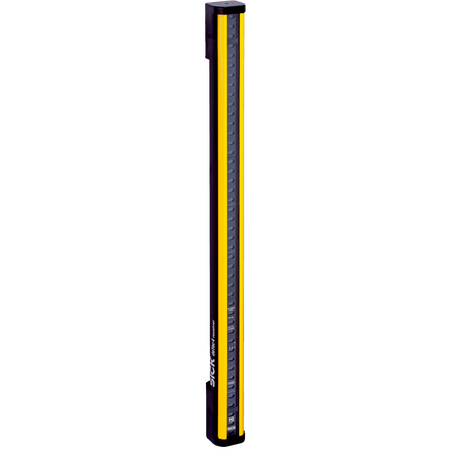

The SICK C4P-EA07511C00 deTec4 safety light curtain receiver is available for immediate purchase, ideal for industrial safety applications requiring high reliability and advanced protective features.
