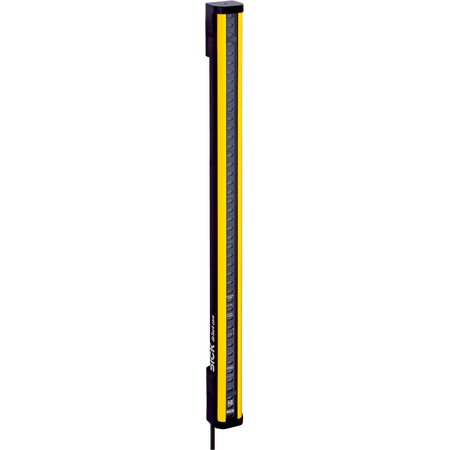

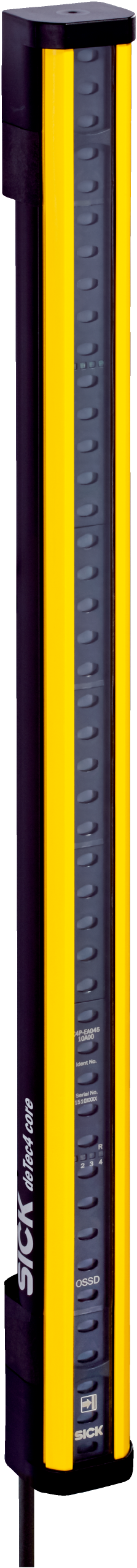

Safety Light Curtain Receiver deTec4 Core | 30 mm Resolution | 15 m Scanning Range | Type 4 Safety | by SICK

BRAND: SICK
SKU: 1211495
$2,427.80 List price: $3,051.50
+ −
30 Days Return Electricians Unlock Trade Access
The Safety Light Curtain Receiver deTec4 Core is designed for industrial safety applications, featuring a 30 mm resolution and a scanning range of up to 15 m. With a protective field height of 600 mm and a rapid response time of 10 ms, it ensures optimal machine safeguarding and personnel protection. Built for durability with an aluminum housing, this receiver is perfect for normal industrial environments, providing reliable performance and compliance with safety standards.

Alternatively Known As: Safety light curtain receiver, industrial safety sensor, deTec4 Core receiver

Technical Specifications
  • Product version: deTec4 Core
  • System part: Receiver compatible with sender 1211494
  • Resolution: 30 mm
  • Scanning range: 15 m
  • Protective field height: 600 mm
  • Response time: 10 ms
  • Safety type: Type 4 (IEC 61496-1)
  • Safety integrity level: SIL 3 (IEC 61508)
  • Category: Category 4 (ISO 13849-1)
  • Performance level: PL e (ISO 13849-1)
  • PFHD: 3.7 x 10^-9
  • Mission time: 20 years (ISO 13849-1)
  • Safe state on fault: At least one OSSD OFF
  • System connection: M12 5-pin plug with 150 mm cable
  • Protection class: III (IEC 61140)
  • Supply voltage: 24 V DC (19.2 V to 28.8 V)
  • Power consumption: 1.82 W typical
  • Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
  • Enclosure rating: IP65 and IP67 (IEC 60529)
  • Operating temperature: -30°C to +55°C
  • Storage temperature: -30°C to +70°C
  • Humidity: 15% to 95%, non-condensing
  • Vibration resistance: 5-150 Hz, 3.5 mm / 1 g
  • Shock resistance: 15 g / 6 ms
  • Housing material: Aluminum extruded profile
  • Dimensions (H x L x W): 600mm x 40mm x 50mm
  • Weight: 1.5 kg
Key Features
  • Type 4 safety light curtain receiver with 30 mm resolution
  • Scanning range up to 15 m with 600 mm protective field height
  • No blind zones with optical synchronization
  • Automatic calibration of protective field width
  • Response time of 10 ms
  • LED display elements for status indication
  • Short-circuit protected, cross-circuit monitored PNP output signals
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and safety.
Applications
  • Industrial safety applications in normal industrial environments
  • Machine safeguarding and personnel protection
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable aluminum housing ensures long product life reducing waste
  • Low power consumption of 1.82 W reduces energy usage
  • Complies with RoHS for hazardous substance reduction
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.

Available Now

The SICK C4C-EA06030A10000 deTec4 Core safety light curtain receiver is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
