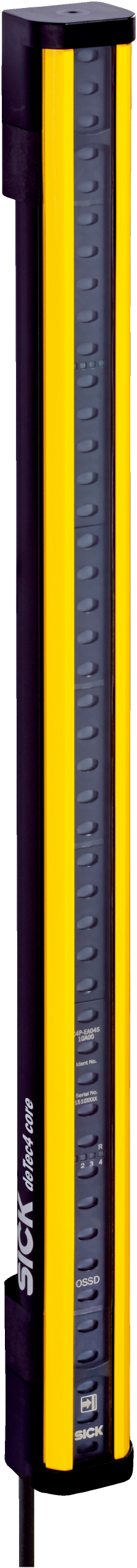

Safety Light Curtain Receiver deTec4 Core | Type 4 Safety | 30 mm Resolution | 2100 mm Protective Height | by SICK
The Safety Light Curtain Receiver deTec4 Core is designed for industrial safety applications, featuring a 30 mm resolution and a protective field height of 2100 mm. With a scanning range of 15 m and a rapid response time of 14 ms, it ensures optimal machine safeguarding and personnel protection in various environments. Built with a robust aluminum housing and high protection ratings of IP65 and IP67, this safety sensor is perfect for automation and manufacturing safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Safety light curtain receiver, industrial safety sensor, deTec4 Core safety curtain, SICK safety light barrier
Technical Specifications
- Product version: deTec4 Core
- System part: Receiver
- Compatible sender: 1211513
- Resolution: 30 mm
- Scanning range: 15 m
- Protective field height: 2100 mm
- Response time: 14 ms
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 3.7 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD OFF
- System connection: Plug, M12, 5-pin with 150 mm cable
- Power supply: 24 V DC (19.2 V to 28.8 V)
- Power consumption: 2.78 W typical
- Output: 2 PNP semiconductors, short-circuit protected
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 and IP67
- Operating temperature: -30°C to +55°C
- Storage temperature: -30°C to +70°C
- Vibration resistance: 5-150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Housing material: Aluminum extruded profile
- Dimensions (H x L x W): 2100mm x 40mm x 50mm
- Weight: 1.5 kg
Key Features
- Type 4 safety light curtain receiver with 30 mm resolution
- Protective field height of 2100 mm and scanning range of 15 m
- No blind zones with optical synchronization
- Automatic calibration of protective field width
- Response time of 14 ms
- LED display elements for status indication
- Robust aluminum extruded profile housing
- High protection rating IP65 and IP67
- Wide ambient operating temperature range from -30°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and optimal safety.
Applications
- Industrial safety applications in normal industrial environments
- Machine safeguarding and personnel protection
- Automation and manufacturing safety systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Low power consumption of 2.78 W reduces energy usage
- Long mission time of 20 years supports sustainable operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

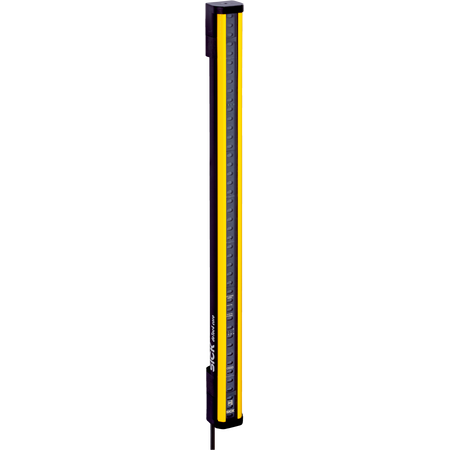

The SICK C4C-EA21030A10000 deTec4 Core Receiver Safety Light Curtain is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
