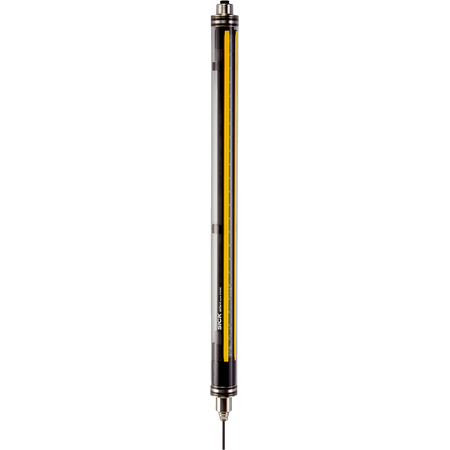

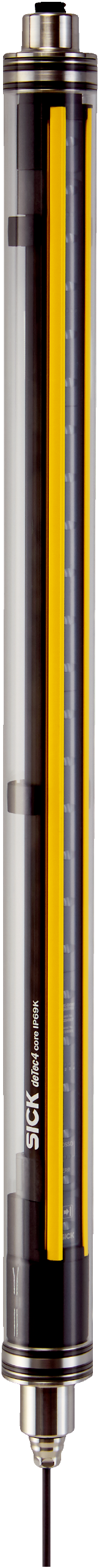

Safety Light Curtain Receiver | IP69K Protection | 30 mm Resolution | 12.5 m Scanning Range | by SICK
The Safety Light Curtain Receiver is designed for industrial safety applications, featuring an IP69K protective housing and a resolution of 30 mm. With a scanning range of 12.5 m and a protective field height of 900 mm, it ensures reliable machine safeguarding in hygienic environments. Ideal for food and pharmaceutical industries, this receiver offers high safety integrity with SIL 3 and PL e ratings, making it a robust choice for critical safety needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Safety Light Curtain Receiver, IP69K Safety Sensor, deTec4 Core Receiver, Industrial Safety Light Curtain
Technical Specifications
- Product version: deTec4 Core IP69K
- System part: Receiver
- Compatible sender: 1219560
- Resolution: 30 mm
- Scanning range: 12.5 m
- Protective field height: 900 mm
- Response time: 11 ms
- No blind zones: Yes
- Synchronization: Optical synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 3.7 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD is OFF
- System connection: 15 m PUR halogen-free cable, 5-wire, 0.34 mm² conductor
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V ... 28.8 V)
- Power consumption typical: 2.02 W
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Material: PMMA protective housing, stainless steel 1.4404 end caps and cable glands with silicone seal, PA 6 compensating element
- Enclosure rating: IP65, IP66, IP67, IP69K
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Dimensions (H x L x W): 900mm x 40mm x 50mm
- Weight: 2.5 kg
Key Features
- Type 4 safety light curtain receiver with IP69K protective housing
- Resolution of 30 mm and scanning range of 12.5 m
- Protective field height of 900 mm with no blind zones
- Optical synchronization and automatic calibration of protective field width
- High safety integrity level SIL 3 and performance level PL e
- Short response time of 11 ms
- Robust stainless steel end caps and cable glands with silicone seal
- LED display elements for status indication
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtain systems and electrical safety standards.
Applications
- Areas with special hygiene requirements
- Industrial safety applications requiring high protection levels
- Machine safeguarding in food and pharmaceutical industries
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Durable IP69K housing reduces need for frequent replacements
- Halogen-free PUR cable material supports environmental safety
- Energy-efficient operation with low power consumption (2.02 W typical)
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK deTec4 Core IP69K Safety Light Curtain Receiver C4C-EB09030A10000 is available for immediate purchase, ideal for industrial safety applications in hygienic environments.
