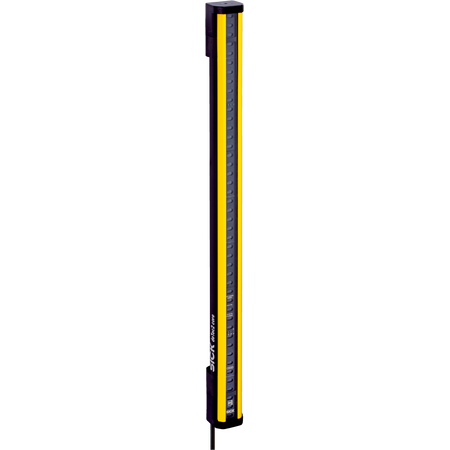

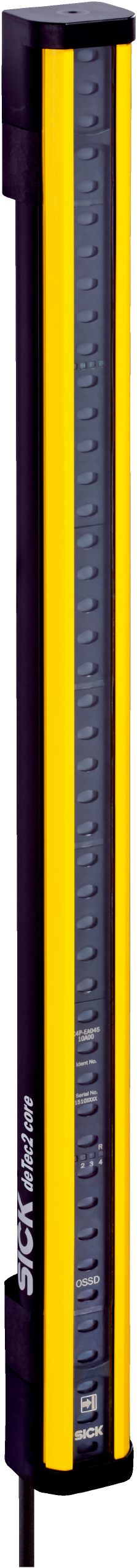

Safety Light Curtain Receiver | Type 2 | IP65 & IP67 Rated | 30mm Resolution | by SICK
The Safety Light Curtain Receiver is designed for industrial safety applications, featuring a Type 2 classification and an impressive 30mm resolution with a scanning range of 15m. With a protective field height of 1,350mm and a response time of just 12ms, it ensures reliable machine safeguarding and personnel protection in normal industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Safety light curtain receiver, Industrial safety sensor, Machine safety light barrier
Technical Specifications
- Type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (ISO 13849-1)
- Performance level: PL c (ISO 13849-1)
- Mean probability of dangerous failure per hour (PFHD): 31 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state in fault condition: At least one OSSD is OFF
- System connection: Plug, M12, 5-pin with 150 mm cable length and 4.3 mm diameter
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Current capacity per OSSD: ≤ 300 mA
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Dimensions (H x L x W): 1350mm x 100mm x 50mm
- Weight: 1.5 kg
Key Features
- Resolution of 30 mm with a scanning range of 15 m
- Protective field height of 1,350 mm
- Response time of 12 ms with no blind zones
- Optical synchronization for reliable operation
- Automatic calibration of the protective field width
- LED display elements for status indication
- Robust aluminum extruded profile housing
- High ingress protection rating of IP65 and IP67
- Wide ambient operating temperature range from -30 °C to +55 °C
- Shock resistance of 15 g / 6 ms and vibration resistance compliant with EN 60068-2 standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and optimal safety.
Applications
- Normal industrial environment safety monitoring
- Machine safeguarding and personnel protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 2.3 W
- Durable construction reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK C2C-EA13530A10000 deTec2 Core Receiver Safety Light Curtain is available for immediate purchase, ideal for industrial safety applications requiring reliable machine safeguarding.
