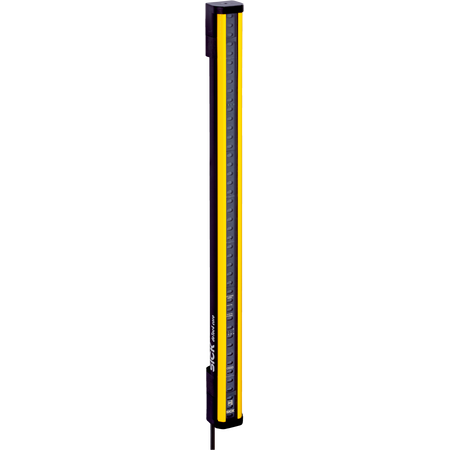

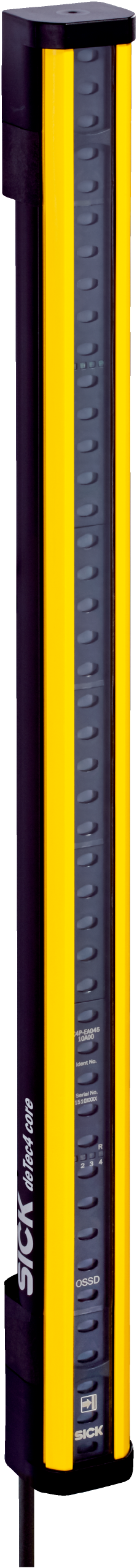

Safety Light Curtain Receiver | Type 4 | 14 mm Resolution | 10 m Scanning Range | 450 mm Protective Field | by SICK
The Safety Light Curtain Receiver is designed for industrial safety applications, featuring a Type 4 safety rating and a 14 mm resolution. With a scanning range of 10 m and a protective field height of 450 mm, it ensures reliable machine safeguarding and personnel protection. Built for durability and compliance, this receiver is ideal for automation and manufacturing safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Safety light curtain receiver, industrial safety sensor, deTec4 Core receiver, machine safety light curtain
Technical Specifications
- Product version: deTec4 Core
- System part: Receiver compatible with sender 1211469
- Resolution: 14 mm
- Scanning range: 10 m
- Protective field height: 450 mm
- Response time: 12 ms
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 3.7 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD OFF
- System connection: M12, 5-pin plug with 150 mm cable
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Power consumption: 2.16 W typical
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Enclosure rating: IP65/IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5-150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Housing material: Aluminum extruded profile
- Dimensions (H x L x W): 450mm x 40mm x 50mm
- Weight: 1.5 kg
Key Features
- Type 4 safety light curtain receiver with 14 mm resolution
- Protective field height of 450 mm and scanning range of 10 m
- No blind zones with optical synchronization
- Automatic calibration of protective field width
- Response time of 12 ms
- LED display elements for status indication
- Short-circuit protected, cross-circuit monitored PNP semiconductor outputs
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and safety.
Applications
- Industrial safety applications in normal industrial environments
- Machine safeguarding and personnel protection
- Automation and manufacturing safety systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption (2.16 W typical)
- Durable aluminum housing extends product life and reduces waste
- Complies with RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK C4C-EA04510A10000 deTec4 Core safety light curtain receiver is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
