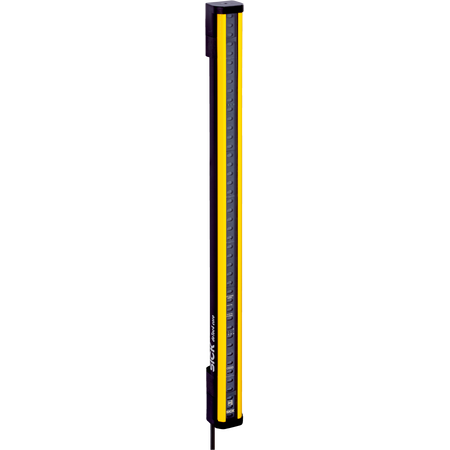

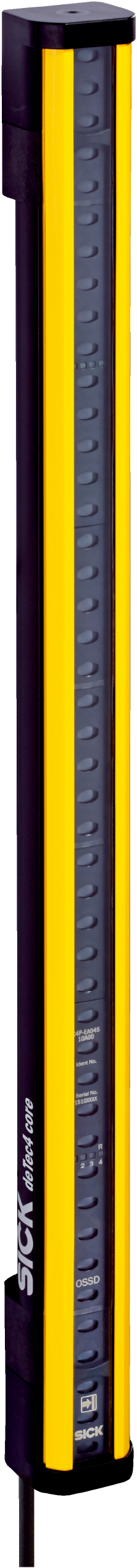

Safety Light Curtain Receiver | Type 4 | 14 mm Resolution | 10 m Scanning Range | by SICK

BRAND: SICK
SKU: 1211515
$3,808.30 List price: $4,786.60
+ −
30 Days Return Electricians Unlock Trade Access
The Safety Light Curtain Receiver is a Type 4 safety sensor designed for industrial applications, featuring a 14 mm resolution and a scanning range of 10 m. With a protective field height of 900 mm and no blind zones due to optical synchronization, it ensures optimal machine safeguarding and personnel protection. Built for durability with an aluminum extruded profile and high ingress protection ratings of IP65 and IP67, this sensor is perfect for normal industrial environments.

Alternatively Known As: Safety light curtain receiver, industrial safety sensor, machine safety light curtain, SICK safety sensor

Technical Specifications
  • Product version: deTec4 Core
  • Resolution: 14 mm
  • Scanning range: 10 m
  • Protective field height: 900 mm
  • Response time: 14 ms
  • Safety type: Type 4 (IEC 61496-1)
  • Safety integrity level: SIL 3 (IEC 61508)
  • Category: Category 4 (ISO 13849-1)
  • Performance level: PL e (ISO 13849-1)
  • PFHD: 3.7 x 10^-9
  • Mission time: 20 years (ISO 13849-1)
  • Safe state on fault: At least one OSSD OFF
  • System connection: Plug, M12, 5-pin with 150 mm cable
  • Protection class: III (IEC 61140)
  • Supply voltage: 24 V DC (19.2 V to 28.8 V)
  • Power consumption: 2.88 W typical
  • Output: 2 PNP semiconductors, short-circuit protected
  • Housing material: Aluminum extruded profile
  • Enclosure rating: IP65 and IP67
  • Operating temperature: -30°C to +55°C
  • Storage temperature: -30°C to +70°C
  • Humidity: 15% to 95%, non-condensing
  • Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
  • Shock resistance: 15 g / 6 ms
  • Dimensions (H x L x W): 900mm x 40mm x 50mm
  • Weight: 1.5 kg
Key Features
  • Type 4 safety light curtain receiver with 14 mm resolution
  • Protective field height of 900 mm and scanning range of 10 m
  • No blind zones with optical synchronization
  • Automatic calibration of protective field width
  • LED display elements for status indication
  • Short response time of 14 ms
  • Robust aluminum extruded profile housing
  • High ingress protection rating IP65 and IP67
  • Wide operating temperature range from -30°C to +55°C
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and optimal safety.
Applications
  • Normal industrial environment safety monitoring
  • Machine safeguarding and personnel protection
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Energy-efficient operation with low power consumption of 2.88 W
  • Durable design reduces waste and replacement frequency
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.

Available Now

The SICK deTec4 Core C4C-EA09010A10000 safety light curtain receiver is available for immediate purchase, ideal for industrial safety and machine guarding applications.
