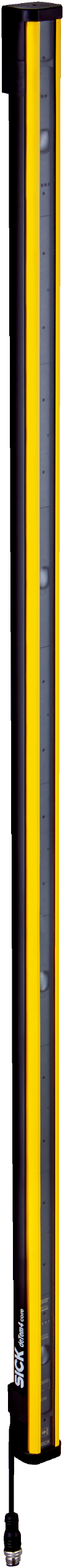

Safety Light Curtain Receiver | Type 4 | 4 Beams with 300mm Separation | IP65 & IP67 Rated | by SICK
The Safety Light Curtain Receiver is designed for industrial safety applications, featuring a Type 4 safety rating and 4 beams with 300 mm separation. With a rapid response time of 20 ms and optical synchronization, it ensures optimal safety performance in normal industrial environments. Built with durable aluminum housing and a polycarbonate front screen, this receiver is perfect for applications requiring high integrity light curtains.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Safety Light Curtain Receiver, Industrial Safety Sensor, deTem4 Core Receiver, Optical Safety Barrier
Technical Specifications
- Product version: deTem4 Core
- Functional principle: Sender/receiver
- Number of beams: 4
- Beam separation: 300 mm
- Response time: 20 ms
- Synchronization: Optical synchronization
- System connection: Plug, M12, 5-pin
- Permitted cable length: 50 m
- Output signal switching devices (OSSDs): 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state switching voltage HIGH: 24 V DC (VS – 2.25 V DC ... VS)
- OFF state switching voltage LOW: ≤ 2 V DC
- Current-carrying capacity per OSSD: ≤ 300 mA
- Supply voltage VS: 24 V DC (19.2 V DC ... 28.8 V DC)
- Residual ripple: ≤ 10 %
- Protection class: III (IEC 61140)
- Housing: Aluminum extruded profile
- Front screen: Polycarbonate with scratch-resistant coating
- Weight: 880 g (± 50 g)
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Ambient operating temperature: –30 °C to +55 °C
- Storage temperature: –30 °C to +70 °C
- Air humidity: 15 % to 95 %, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Dimensions (H x L x W): 34mm x 150mm x 31mm
- Weight: 0.88 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- SIL 3 safety integrity level (IEC 61508)
- Category 4 safety category (ISO 13849-1)
- Performance level PL e (ISO 13849-1)
- 4 beams with 300 mm beam separation
- Response time of 20 ms
- Optical synchronization
- LED display elements
- Short-circuit protected, cross-circuit monitored PNP semiconductor outputs
- Protection class III (IEC 61140)
- IP65 and IP67 enclosure rating
- Operating temperature range from -30°C to +55°C
- Shock resistance 15 g / 6 ms and vibration resistance 5-150 Hz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and optimal safety performance.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing and polycarbonate front screen reduce material waste through long product life
- Low power consumption of ≤ 4.32 W reduces energy usage
- High reliability and long mission time (20 years) minimize replacement frequency and electronic waste
Warranty Information
Warranty details available upon request from manufacturer or supplier.
Available Now
The SICK M4C-EA04300A10 deTem4 Core Receiver Safety Light Curtain is available for immediate purchase, ideal for industrial safety applications requiring high integrity light curtains.
