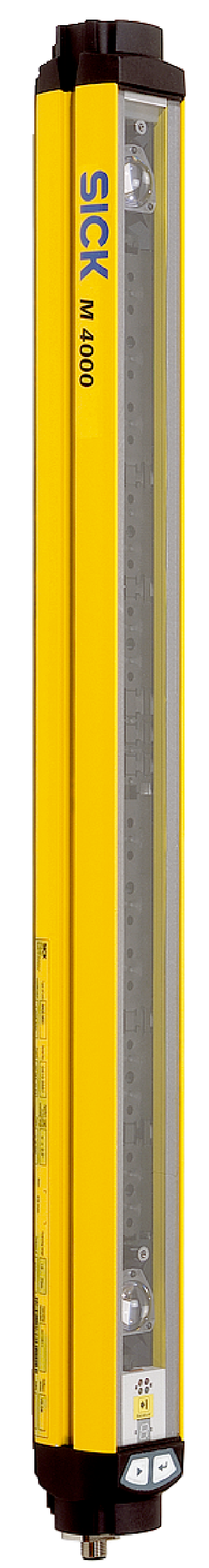

Safety Light Curtain Receiver | Type 4 with SIL 3 Certification | Configurable Scanning Range | 4 Beams | by SICK
The Safety Light Curtain Receiver is designed for industrial applications, featuring a Type 4 safety rating with SIL 3 and PL e certification. With a configurable scanning range from 0.5 m to 70 m and 4 beams with 300 mm separation, it ensures reliable machine safeguarding and access control. Built for durability and efficiency, this receiver operates in temperatures from -30°C to +55°C, making it ideal for automation and manufacturing safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Safety light curtain receiver, industrial safety sensor, machine safety light barrier
Technical Specifications
- Functional principle: Sender/receiver
- Scanning range: 0.5 m to 70 m configurable
- Number of beams: 4
- Beam separation: 300 mm
- Response time: 10 ms
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.6 x 10^-9 (EN ISO 13849)
- Mission time: 20 years
- Output signal switching devices: 2 PNP semiconductors, short-circuit protected
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 0.6 A
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -30°C to +55°C
- Storage temperature: -30°C to +70°C
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Shock resistance: 10 g, 16 ms
- Wave length: 850 nm
- Dimensions (H x L x W): 55mm x 150mm x 52mm
- Weight: 1.2 kg
Key Features
- Type 4 safety light curtain receiver with SIL 3 and PL e certification
- Configurable scanning range from 0.5 m to 70 m
- 4 beams with 300 mm beam separation
- Optical synchronization and beam coding for reliable operation
- Short response time of 10 ms
- LED and 7-segment display for configuration and status indication
- Robust aluminum alloy housing with polycarbonate scratch-resistant front screen
- IP65 rated enclosure for protection against dust and water
- Wide ambient operating temperature range from -30°C to +55°C
Professional Installation Requirements
- Installation by a qualified safety systems technician or electrician is recommended to ensure compliance with safety standards and proper configuration.
Applications
- Industrial safety light curtain applications
- Machine safeguarding and access control
- Automation and manufacturing safety systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption enhances energy efficiency in industrial environments
Warranty Information
Standard manufacturer warranty applies, typically 12 months from date of purchase.
Available Now
The SICK M40E-043000RR0 Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial machine safeguarding and automation safety applications.
