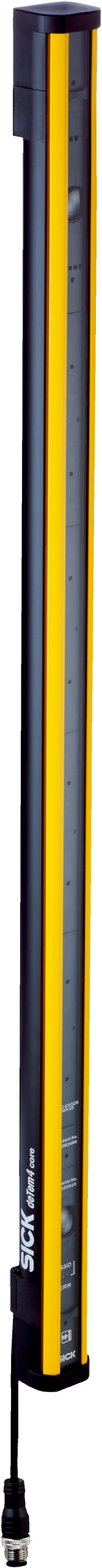

Safety Light Curtain Receiver | Type 4 | SIL 3 Safety Level | IP65 & IP67 Rated | by SICK
The Safety Light Curtain Receiver is designed for industrial safety applications, featuring a Type 4 safety rating and SIL 3 safety integrity level. With two beams and a 500 mm beam separation, it ensures reliable operation in environments ranging from -30 °C to +55 °C. Built for durability with an aluminum housing and polycarbonate front screen, this receiver is perfect for enhancing workplace safety and compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Safety Light Curtain Receiver, Industrial Safety Sensor, deTem4 Core Receiver
Technical Specifications
- Product version: deTem4 Core
- Functional principle: Sender/receiver
- Number of beams: 2
- Beam separation: 500 mm
- Response time: 20 ms
- Synchronization: Optical synchronization
- System connection: Plug, M12, 5-pin
- Permitted cable length: 50 m
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 4.32 W
- Output signal switching devices: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Current-carrying capacity per OSSD: ≤ 300 mA
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Housing material: Aluminum extruded profile
- Front screen: Polycarbonate with scratch-resistant coating
- Dimensions (H x L x W): 34mm x 150mm x 31mm
- Weight: 0.56 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- SIL 3 safety integrity level (IEC 61508)
- Category 4 safety category (ISO 13849-1)
- Performance level PL e (ISO 13849-1)
- Two beams with 500 mm beam separation
- Optical synchronization
- Short response time of 20 ms
- LED display elements for status indication
- Protection class III (IEC 61140)
- IP65 and IP67 enclosure rating for robust protection
- Operating temperature range from -30 °C to +55 °C
- Shock resistance 15 g / 6 ms and vibration resistance 5-150 Hz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety equipment and electrical standards to ensure compliance and safety.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing and polycarbonate front screen extend product life reducing waste
- Low power consumption of ≤ 4.32 W reduces energy usage
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

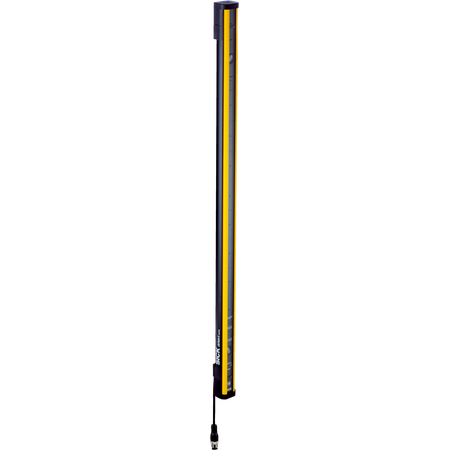

The SICK M4C-EA02500A10 safety light curtain receiver is available for immediate purchase, ideal for industrial safety applications requiring high integrity and reliability.
