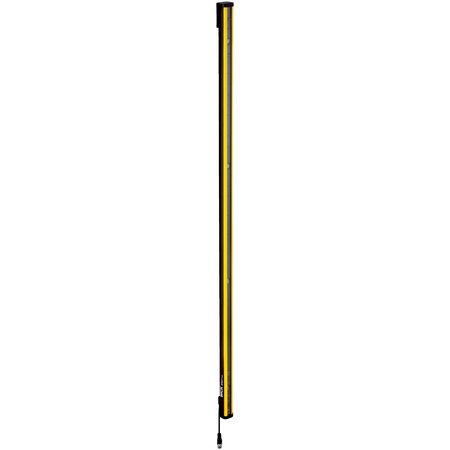

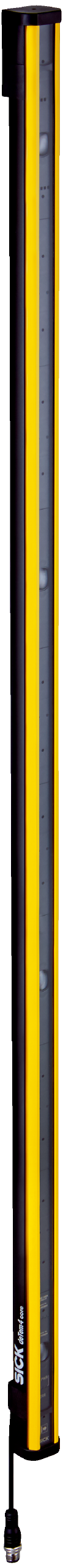

Safety Light Curtain Sender M4C-SA0430HA10 | 4 Beams | Great Scanning Range up to 90m | IP65 & IP67 Rated | by SICK
The Safety Light Curtain Sender M4C-SA0430HA10 features a robust design with 4 beams and a scanning range of up to 90 meters, making it ideal for machine safeguarding and personnel protection in industrial environments. With optical synchronization and an IP65/IP67 rated enclosure, this sensor ensures reliable operation even in harsh conditions, providing peace of mind for automation and safety monitoring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Safety Light Curtain Sender, Industrial Safety Sensor, deTem4 Core Sender, Optical Safety Sensor
Technical Specifications
- Functional principle: Sender/receiver
- System part: Sender
- Scanning range category: Great scanning range
- Scanning range: Typical 10 m to 90 m, Minimum 10 m to 70 m
- Number of beams: 4
- Beam separation: 300 mm
- Synchronization: Optical synchronization
- System connection: Plug, M12, 5-pin, Flexi Loop compatible M12 male connector
- Permitted cable length: 50 m
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Residual ripple: ≤ 10%
- Power consumption: ≤ 1.44 W (DC)
- Housing cross-section: 31 mm x 34 mm
- Material: Aluminum extruded profile housing, polycarbonate front screen with scratch-resistant coating
- Weight: 880 g (± 50 g)
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Ambient operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g (EN 60068-2-6)
- Shock resistance: 15 g / 6 ms (EN 60068-2-27)
- Type of light: Near-infrared (NIR), invisible
- Dimensions (H x L x W): 34mm x 150mm x 31mm
- Weight: 0.88 kg
Key Features
- Type 4 safety light curtain sender with 4 beams
- Great scanning range up to 90 m typical
- Optical synchronization for reliable operation
- Protection class III with 24 V DC supply voltage
- Housing made of aluminum extruded profile with polycarbonate scratch-resistant front screen
- IP65 and IP67 rated enclosure for harsh environments
- Operating temperature range from -30 °C to +55 °C
- Safety integrity level SIL 3 and Performance level PL e
- LED display elements for status indication
- Flexible cable bend radius for installation convenience
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure compliance with safety standards and optimal performance.
Applications
- Normal industrial environment requiring safety light curtains
- Machine safeguarding and personnel protection
- Industrial automation and safety monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and scratch-resistant coating extend product life
- High reliability reduces waste from failures and replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK M4C-SA0430HA10 safety light curtain sender is available for immediate purchase, ideal for industrial safety and automation applications.
