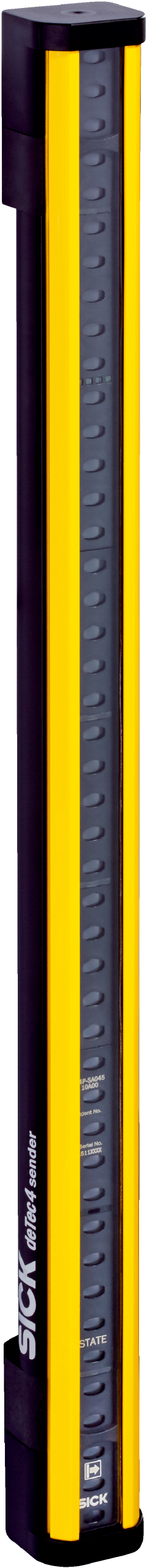

Safety Light Curtain Sender deTec4 | 14 mm Resolution | 20 m Scanning Range | IP65/IP67 Rated | by SICK
The Safety Light Curtain Sender deTec4 features a 14 mm resolution and a scanning range of up to 20 m, making it ideal for machine safeguarding and personnel protection in industrial environments. With robust IP65/IP67 ratings and integrated laser alignment for precise setup, this sensor ensures optimal safety performance in automation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Safety Light Curtain Sender, Industrial Safety Sensor, deTec4 Safety Light Barrier
Technical Specifications
- Product version: deTec4
- Resolution: 14 mm
- Scanning range: 20 m
- Protective field height: 1,200 mm
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD single device: 15.3 x 10^-9
- Power supply: 24 V DC (19.2 V to 28.8 V)
- Power consumption typical: 1.94 W
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30°C to +55°C
- Storage temperature: -30°C to +70°C
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Laser class: 1, wavelength 650 nm visible red light
- System connection: M12 male connector, 5-pin or 8-pin
- Extension connection: M12 female connector, 5-pin optional
- Configuration: DIP switch on system plug
- Display: LEDs
- Dimensions (H x L x W): 1200mm x 60mm x 40mm
- Weight: 2.5 kg
Key Features
- Type 4 safety light curtain sender with 14 mm resolution
- Scanning range up to 20 m with 1,200 mm protective field height
- No blind zones with optical synchronization
- Integrated laser alignment aid for precise setup
- Automatic calibration of protective field width
- Beam coding and cascading capabilities
- LED display elements for status indication
- Robust aluminum extruded profile housing
- High ingress protection rating IP65/IP67
- Wide ambient operating temperature range from -30°C to +55°C
- Shock and vibration resistant
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety systems and electrical standards to ensure compliance and optimal safety performance.
Applications
- Normal industrial environment for safety light curtain applications
- Machine safeguarding and personnel protection
- Industrial automation safety systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption at 1.94 W typical reduces energy usage
- Durable construction extends product life and reduces waste
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

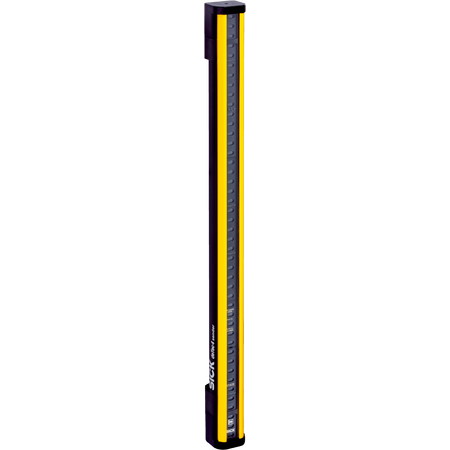

The SICK deTec4 C4P-SA12011A00 Safety Light Curtain Sender is available for immediate purchase, ideal for industrial safety and automation applications.
