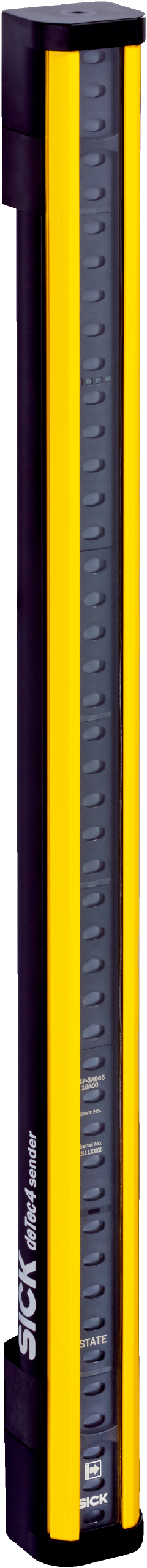

Safety Light Curtain Sender deTec4 | 14 mm Resolution | 20 m Scanning Range | IP65/IP67 Rated | by SICK
The Safety Light Curtain Sender deTec4 is designed for industrial safety applications, featuring a 14 mm resolution and a scanning range of up to 20 m. With a protective field height of 1,650 mm and robust IP65/IP67 ingress protection, it ensures reliable machine safeguarding and personnel protection in harsh environments. Ideal for qualified personnel installation, this sensor offers automatic calibration and integrated laser alignment for precise setup.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Safety light curtain sender, industrial safety sensor, deTec4 safety sensor, SICK safety light barrier
Technical Specifications
- Product version: deTec4
- Resolution: 14 mm
- Scanning range: 20 m
- Protective field height: 1,650 mm
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD single device: 15.3 x 10^-9
- PFHD cascade with one guest: 30.5 x 10^-9
- PFHD cascade with two guests: 45.6 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD is OFF
- System connection: M12 male connector, 5-pin or 8-pin
- Extension connection: M12 female connector, 5-pin or none
- Configuration: DIP switch on system plug
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Power consumption typical: 2.2 W
- Enclosure rating: IP65/IP67 (IEC 60529)
- Operating temperature: -30°C to +55°C
- Storage temperature: -30°C to +70°C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Laser class: 1
- Wavelength: 650 nm visible red light
- Dimensions (H x L x W): 1650mm x 40mm x 50mm
- Weight: 3 kg
Key Features
- Type 4 safety light curtain sender with 14 mm resolution
- Scanning range up to 20 m with 1,650 mm protective field height
- No blind zones with optical synchronization
- Integrated laser alignment aid for precise setup
- Automatic calibration of protective field width
- Beam coding and cascading capabilities
- LED display elements for status indication
- Robust aluminum extruded profile housing
- High ingress protection rating IP65/IP67
- Wide ambient operating temperature range from -30°C to +55°C
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety light curtain systems and compliant with relevant safety standards.
Applications
- Normal industrial environment for safety light curtain applications
- Machine safeguarding and personnel protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing ensures long product life reducing waste
- Low power consumption at 2.2 W typical reduces energy usage
- High ingress protection extends operational life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

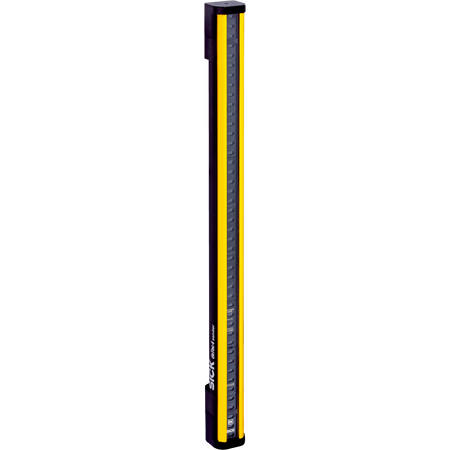

The SICK deTec4 C4P-SA16511A00 Safety Light Curtain Sender is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
