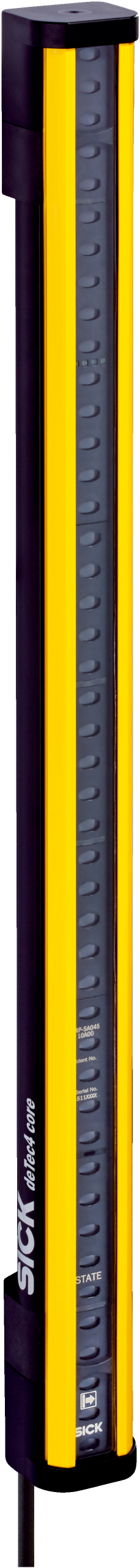

Safety Light Curtain Sender deTec4 Core | 30 mm Resolution | 15 m Scanning Range | IP65 & IP67 Rated | by SICK
The Safety Light Curtain Sender deTec4 Core is designed for industrial safety applications, featuring a 30 mm resolution and a scanning range of up to 15 m. With no blind zones and optical synchronization, it ensures maximum protection for personnel and machinery. Built for durability with an aluminum housing and IP65/IP67 ratings, this sensor is perfect for machine safeguarding and automation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Safety Light Curtain Sender, Industrial Safety Sensor, deTec4 Core Light Curtain, SICK Safety Sensor
Technical Specifications
- Product version: deTec4 Core
- System part: Sender
- Compatible receiver: 1211504
- Resolution: 30 mm
- Scanning range: 15 m
- Protective field height: 1,350 mm
- No blind zones: Yes
- Synchronization: Optical synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 3.7 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD is OFF
- System connection: Plug, M12, 5-pin
- Cable length: 150 mm
- Cable diameter: 4.3 mm
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Ripple: ≤ 10%
- Power consumption typical: 1.15 W
- Housing material: Aluminum extruded profile
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Light type: Near-infrared (NIR), 850 nm wavelength
- Dimensions (H x L x W): 1350mm x 40mm x 50mm
- Weight: 1.5 kg
Key Features
- Type 4 safety light curtain sender with 30 mm resolution
- Scanning range up to 15 m with protective field height of 1,350 mm
- No blind zones with optical synchronization
- Automatic calibration of protective field width
- LED display elements for status indication
- Robust aluminum extruded profile housing
- Protection class III with IP65 and IP67 enclosure ratings
- Wide ambient operating temperature range from -30 °C to +55 °C
- High vibration and shock resistance
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety systems and electrical standards to ensure compliance and optimal safety performance.
Applications
- Normal industrial environment for safety light curtain applications
- Machine safeguarding and personnel protection
- Automation and manufacturing safety systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 1.15 W
- Durable design reduces waste and replacement frequency
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

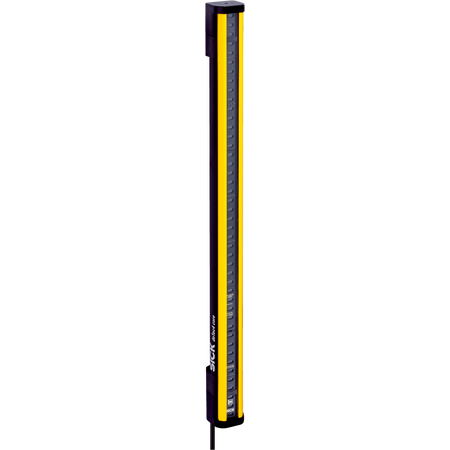

The SICK C4C-SA13530A10000 deTec4 Core safety light curtain sender is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
