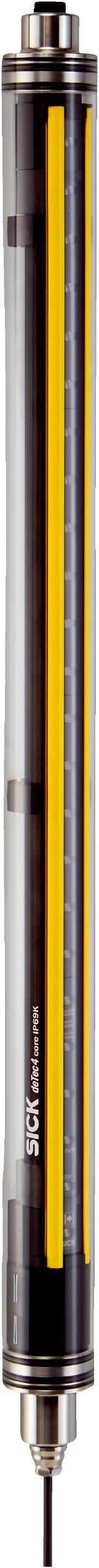

Safety Light Curtain Sender | IP69K Rated | 30mm Resolution | 12.5m Scanning Range | by SICK
The Safety Light Curtain Sender is designed for industrial safety applications, featuring a robust IP69K rating and a resolution of 30 mm. With a scanning range of 12.5 m and no blind zones, it ensures reliable operation in hygienic environments, making it ideal for food and pharmaceutical industries. Built for long-lasting performance, this sender meets Type 4 safety standards and offers optical synchronization for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Safety Light Curtain Sender, IP69K Safety Light Barrier, Industrial Safety Sensor, deTec4 Core Sender
Technical Specifications
- Product version: deTec4 Core IP69K
- System part: Sender
- Compatible receiver: 1219561
- Resolution: 30 mm
- Scanning range: 12.5 m
- Protective field height: 900 mm
- No blind zones: Yes
- Synchronization: Optical synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 3.7 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD is OFF
- System connection: 15 m PUR halogen-free cable, 5-wire, 0.34 mm² conductor cross section
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Power consumption typical: 1.01 W
- Material: PMMA protective housing, stainless steel 1.4404 end caps and cable glands with silicone seal, PA 6 compensating element
- Enclosure rating: IP65, IP66, IP67, IP69K
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Light type: Near-infrared (850 nm), invisible
- Dimensions (H x L x W): 900mm x 100mm x 50mm
- Weight: 2.5 kg
Key Features
- Type 4 safety light curtain sender with SIL 3 and PL e safety integrity
- Resolution of 30 mm with a scanning range of 12.5 m
- Protective field height of 900 mm with no blind zones
- Optical synchronization for reliable operation
- Automatic calibration of protective field width
- IP69K rated protective housing suitable for harsh environments
- LED display elements for status indication
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety light curtain systems and compliant with relevant safety standards to ensure proper integration and operation.
Applications
- Areas with special hygiene requirements
- Industrial safety applications requiring Type 4 safety light curtains
- Machine safeguarding in food and pharmaceutical industries
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP69K housing reduces need for frequent replacements, minimizing waste
- Low power consumption of approximately 1.01 W reduces energy usage
- Halogen-free PUR cable material supports environmentally safer disposal
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

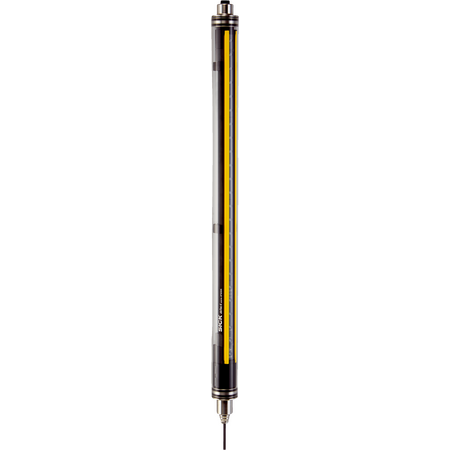

The SICK deTec4 Core IP69K Safety Light Curtain Sender C4C-SB09030A10000 is available for immediate purchase, ideal for industrial safety applications in hygienic environments.
