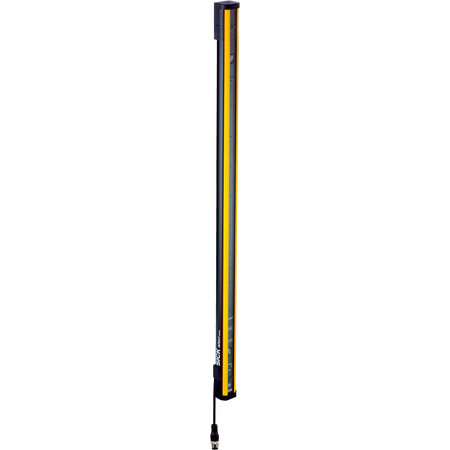

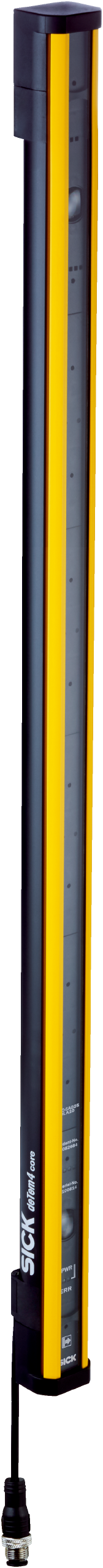

Safety Light Curtain Sender M4C-SA0250HA10 | Type 4 Safety Rating | 90m Scanning Range | Optical Synchronization | by SICK
The Safety Light Curtain Sender M4C-SA0250HA10 is designed for industrial safety applications, featuring a robust Type 4 safety rating and SIL 3 compliance. With a scanning range of up to 90 meters and optical synchronization, it ensures reliable machine safeguarding and personnel protection. Built with a durable aluminum housing and IP65/IP67 ratings, this sender is perfect for harsh environments, providing long-lasting performance and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Safety Light Curtain Sender, Industrial Safety Sensor, deTem4 Core Sender, Optical Safety Sensor
Technical Specifications
- Product version: deTem4 Core
- Functional principle: Sender/receiver
- System part: Sender
- Scanning range: Typical 10 m to 90 m, Minimum 10 m to 70 m
- Number of beams: 2
- Beam separation: 500 mm
- Synchronization: Optical synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 3 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD is OFF
- System connection: Plug, M12, 5-pin
- Flexi Loop compatible M12 male connector
- Permitted cable length: 50 m
- Display elements: LEDs
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Residual ripple: ≤ 10%
- Power consumption: ≤ 1.44 W
- Housing cross-section: 31 mm x 34 mm
- Housing material: Aluminum extruded profile
- Front screen: Polycarbonate with scratch-resistant coating
- Weight: 560 g (± 50 g)
- Cable bend radius stationary: > 12 x cable diameter
- Cable bend radius flexible use: > 15 x cable diameter
- Enclosure rating: IP65 and IP67
- Operating temperature: -30°C to +55°C
- Storage temperature: -30°C to +70°C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Light type: Near-infrared (NIR), invisible
- Dimensions (H x L x W): 34mm x 150mm x 31mm
- Weight: 0.56 kg
Key Features
- Type 4 safety light curtain sender with SIL 3 and Category 4 safety ratings
- Great scanning range up to 90 m with 2 beams and 500 mm beam separation
- Optical synchronization for reliable operation
- Robust aluminum extruded profile housing with polycarbonate scratch-resistant front screen
- IP65 and IP67 rated for protection against dust and water
- Operating temperature range from -30°C to +55°C
- Near-infrared (NIR), invisible light type
- LED display elements for status indication
- Plug M12, 5-pin system connection with Flexi Loop compatibility
Professional Installation Requirements
- Installation by qualified personnel is required to ensure compliance with safety standards and proper system integration.
Applications
- Normal industrial environment requiring safety light curtains
- Machine safeguarding and personnel protection
- Industrial automation and safety systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Durable materials and robust design reduce replacement frequency and waste
- Low power consumption of ≤ 1.44 W reduces energy usage
- Compliance with China RoHS ensures restriction of hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK M4C-SA0250HA10 safety light curtain sender is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
