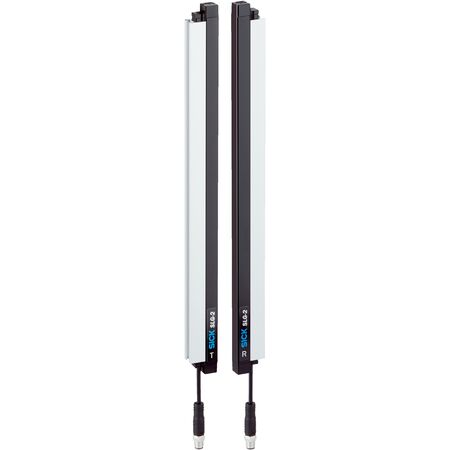

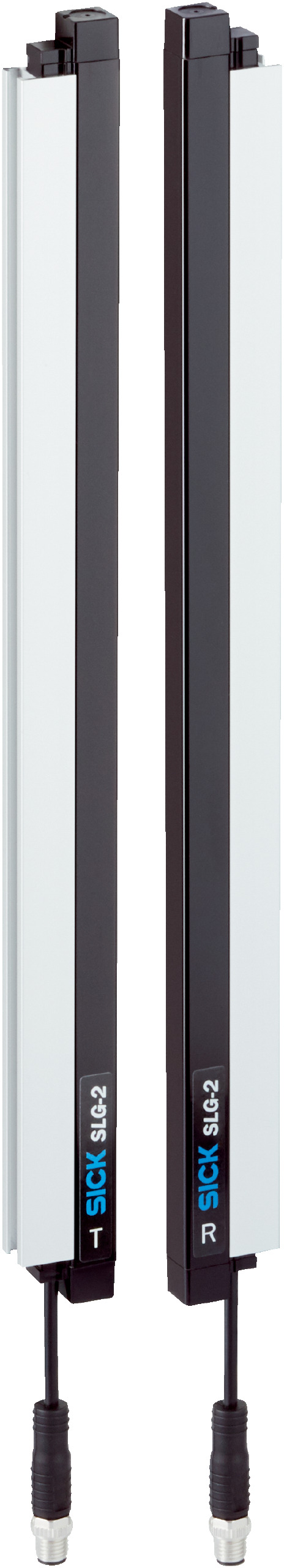

Safety Light Curtain Sender Receiver | 440mm to 4900mm Sensing Range | IP65 & IP67 Rated | by SICK
The SLG25S-020SAR11D30 safety light curtain sender receiver is designed for industrial safety applications, featuring a sensing range from 440mm to 4900mm and a detection height of 200mm with 8 infrared LED beams. Built for robust machine safeguarding and access control, it offers high ambient light immunity and an IP65/IP67 rated enclosure for dust and water protection, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 199mm x 24mm x 12mm
- Weight: 0.76 kg
Key Features
- Sender/receiver functional principle
- Sensing range from 440 mm to 4900 mm
- Detection height of 200 mm with 8 infrared LED beams
- Minimum detectable object size 30 mm² for parallel beam and ≥12 mm² for 7x cross beam
- Slim optical light exit design
- IO-Link interface for sensor parameter configuration
- High ambient light immunity up to 50,000 lx
- Robust aluminum and plastic housing with PMMA front screen
- IP65 and IP67 rated enclosure for dust and water protection
- Overvoltage and short-circuit protection
- Fast response and scan times with repeatability in milliseconds
- Diagnostic functions including hardware error, temperature warning, and communication state monitoring
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment, configuration, and compliance with safety standards.
Applications
- Industrial safety light curtain applications
- Machine safeguarding and access control
- Automation and manufacturing safety systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable construction reduces waste and replacement frequency
- Complies with RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK SLG25S-020SAR11D30 safety light curtain sender and receiver is available for immediate purchase, ideal for industrial safety and automation applications.
