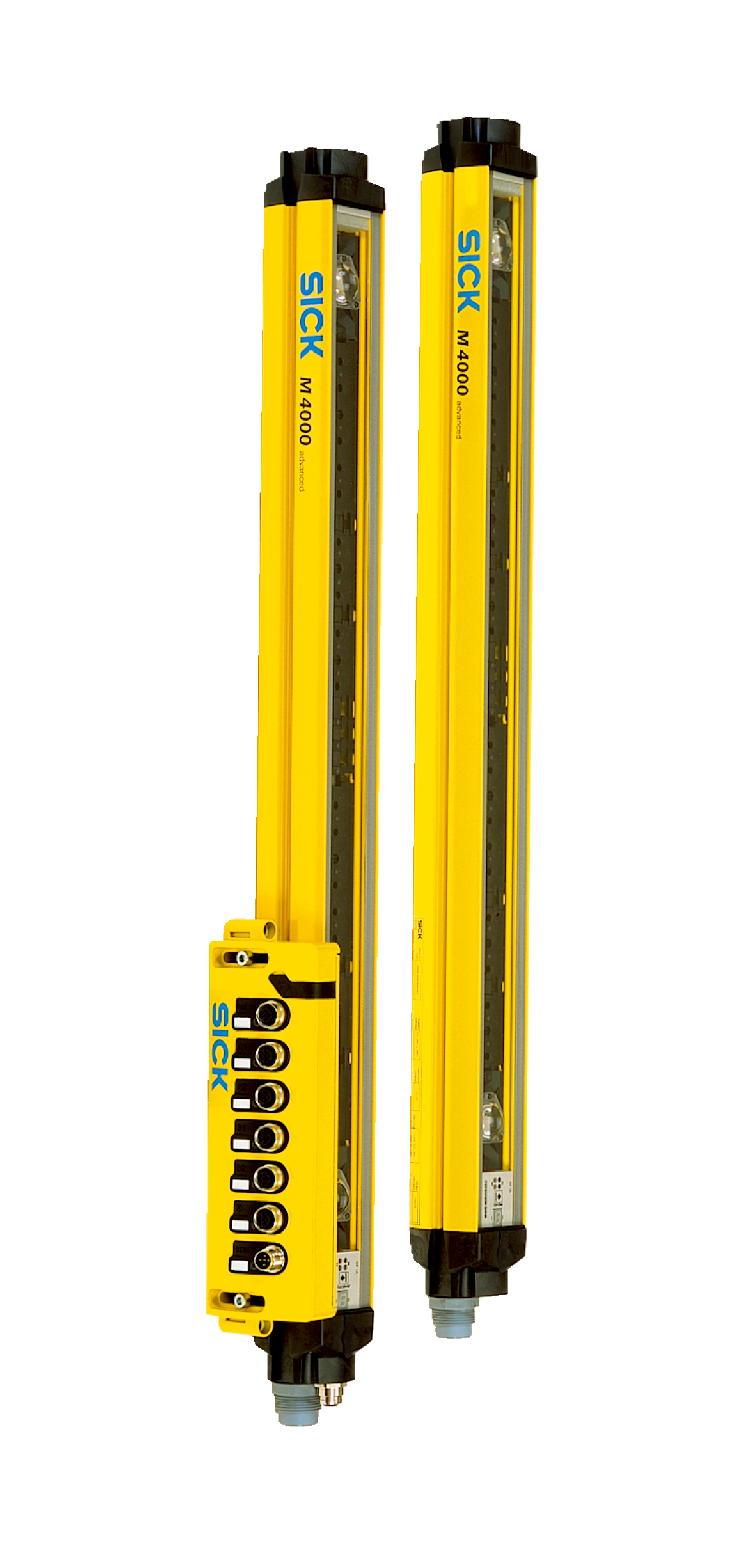

Safety Light Curtain | Sender/Receiver | Configurable Scanning Range | IP65 Rated | by SICK
The Safety Light Curtain features a sender/receiver functional principle with a configurable scanning range from 0.5 m to 70 m, making it ideal for industrial safety and machine guarding applications. With 4 beams and a 300 mm beam separation, it ensures reliable personnel protection in hazardous areas, while its IP65 rating guarantees durability in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Safety light curtain, industrial safety sensor, machine guarding light curtain, muting light curtain, safety sensor pair
Technical Specifications
- Functional principle: Sender/receiver
- Scanning range: 0.5 m to 70 m, configurable
- Number of beams: 4
- Beam separation: 300 mm
- Response time: 10 ms
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.6 x 10^-9 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Output signal switching devices: 2 PNP semiconductors, short-circuit protected
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 0.6 A
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Housing material: Aluminum alloy ALMGSI 0.5, powder coated
- Front screen: Polycarbonate, scratch-resistant coating
- Light source: LED, visible red light 630 nm to 680 nm
- Laser class: 2 (IEC 60825-1)
- Dimensions (H x L x W): 55mm x 150mm x 52mm
- Weight: 1.5 kg
Key Features
- Sender/receiver functional principle with optical synchronization
- Configurable scanning range from 0.5 m to 70 m
- 4 beams with 300 mm beam separation
- Integrated laser alignment aid and end cap with LED
- Type 4 safety (IEC 61496-1) with SIL 3 and PL e performance levels
- Flexible, configurable 4-signal muting for differentiation between man and material
- External device monitoring (EDM) and sender test functions
- Hirschmann male connector M26, 12-pin system connection
- LED 7-segment display for configuration and diagnostics
- Protection class III (IEC 61140) with 24 V DC supply voltage
- Housing made of powder coated aluminum alloy with polycarbonate scratch-resistant front screen
- IP65 rated enclosure for harsh environments
- Operating temperature range from -30 °C to +55 °C
Professional Installation Requirements
- Installation by qualified personnel is required to ensure compliance with safety standards and proper system integration.
Applications
- Industrial safety for machinery and automation
- Personnel protection in hazardous areas
- Access control and perimeter guarding
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable housing materials extend product lifespan and reduce waste
- Configurable scanning range optimizes energy use for specific applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

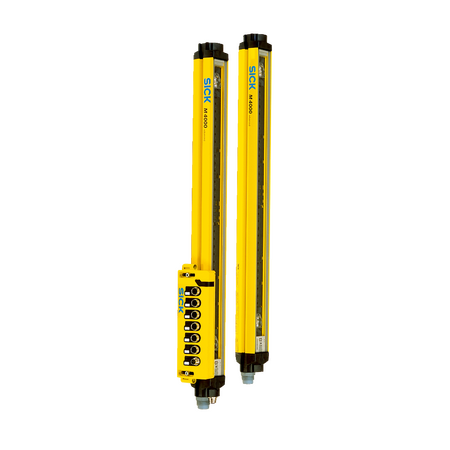

The SICK M40S-043013AA0 and M40E-043033RB0 safety light curtains are available for immediate purchase, ideal for industrial safety and machine guarding applications.
