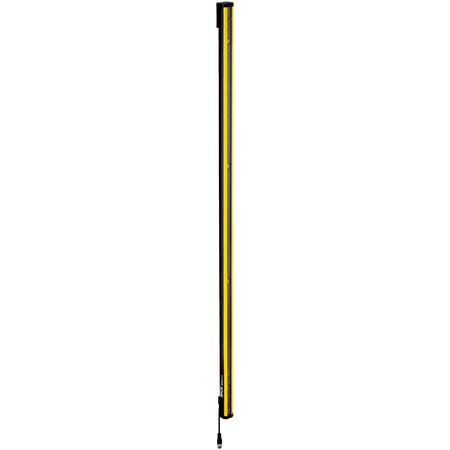

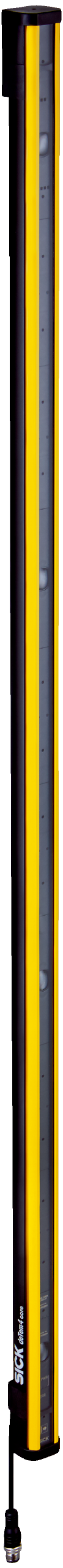

Safety Light Curtain Sender | Type 4 | SIL 3 Safety Integrity | 17m Scanning Range | IP65/IP67 Rated | by SICK
The Safety Light Curtain Sender is designed for industrial safety applications, featuring a Type 4 safety rating and SIL 3 safety integrity. With a scanning range of up to 17 meters and 4 beams with 300 mm separation, it ensures reliable protection in normal industrial environments. Built with durable aluminum housing and a scratch-resistant polycarbonate front, this sensor is perfect for enhancing workplace safety and compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Safety light curtain sender, industrial safety sensor, deTem4 Core safety sensor, SICK safety light barrier
Technical Specifications
- Product version: deTem4 Core
- Functional principle: Sender/receiver
- System part: Sender
- Scanning range category: Low scanning range
- Scanning range: 17 m (typical), 0.5 m to 15 m (minimum)
- Number of beams: 4
- Beam separation: 300 mm
- Synchronization: Optical synchronization
- System connection: Plug, M12, 5-pin
- Flexi Loop compatible M12 male connector
- Permitted cable length: 50 m
- Display elements: LEDs
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Residual ripple: ≤ 10 %
- Power consumption: ≤ 1.44 W
- Housing cross-section: 31 mm x 34 mm
- Housing material: Aluminum extruded profile
- Front screen: Polycarbonate with scratch-resistant coating
- Weight: 880 g (± 50 g)
- Cable bend radius stationary: > 12 x cable diameter
- Cable bend radius flexible use: > 15 x cable diameter
- Enclosure rating: IP65 and IP67
- Ambient operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15 % to 95 %, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Class: 3M4 (IEC TR 60721-4-3)
- Type of light: Near-infrared (NIR), invisible
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 3 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state in fault: At least one OSSD is OFF
- Dimensions (H x L x W): 34mm x 150mm x 31mm
- Weight: 0.88 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (ISO 13849-1) with Performance Level PL e
- 4 beams with 300 mm beam separation
- Optical synchronization
- Scanning range up to 17 m
- Near-infrared (NIR), invisible light
- Protection class III (IEC 61140)
- Power consumption ≤ 1.44 W
- Enclosure rating IP65 and IP67
- Operating temperature range -30 °C to +55 °C
- Shock resistance 15 g / 6 ms and vibration resistance 5-150 Hz
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure compliance with safety standards and optimal performance.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing with scratch-resistant polycarbonate front screen for long service life
- Low power consumption reduces energy usage
- High reliability and long mission time of 20 years reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK M4C-SA0430LA10 safety light curtain sender is available for immediate purchase, ideal for industrial safety applications requiring high integrity light curtains.
