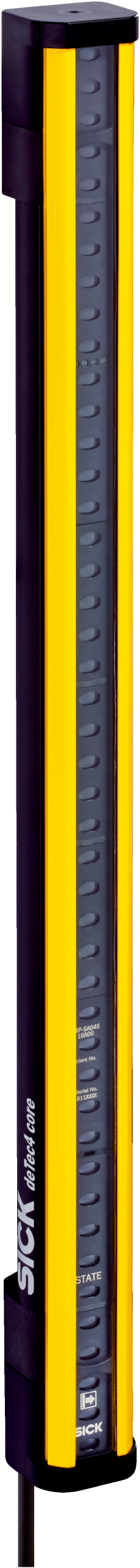

Safety Light Curtain Sender | Type 4 | SIL 3 & IP65/IP67 Rated | 900mm Height | by SICK
The Safety Light Curtain Sender is a Type 4 safety light curtain designed for industrial applications, featuring a resolution of 14 mm and a protective field height of 900 mm. With SIL 3 safety integrity and IP65/IP67 rating, it ensures reliable machine safeguarding and personnel protection in various environments, making it ideal for enhancing workplace safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Safety Light Curtain Sender, Industrial Safety Sensor, deTec4 Core Light Curtain, Optical Safety Barrier
Technical Specifications
- Dimensions (H x L x W): 900mm x 40mm x 50mm
- Weight: 1.5 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (ISO 13849-1) with Performance Level PL e
- Resolution of 14 mm with a scanning range of 10 m
- Protective field height of 900 mm with no blind zones
- Optical synchronization for reliable operation
- Automatic calibration of the protective field width
- LED display elements for status indication
- Robust aluminum extruded profile housing
- Protection class III and IP65/IP67 rated enclosure
- Wide ambient operating temperature range from -30 °C to +55 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure compliance with safety standards and optimal performance.
Applications
- Normal industrial environment for safety light curtain applications
- Machine safeguarding and personnel protection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Durable aluminum housing enhances product longevity reducing waste
- Low power consumption of 1.44 W reduces energy usage
- Complies with multiple international environmental and safety certifications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

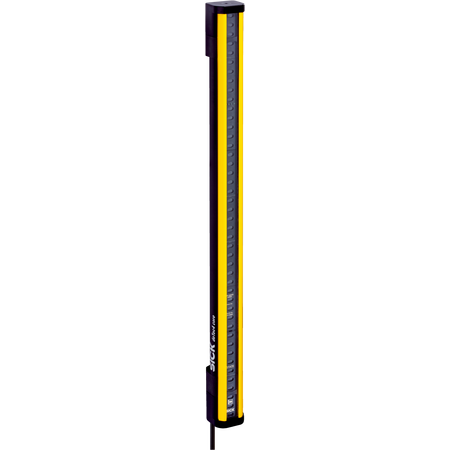

The SICK C4C-SA09010A10000 safety light curtain sender is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
