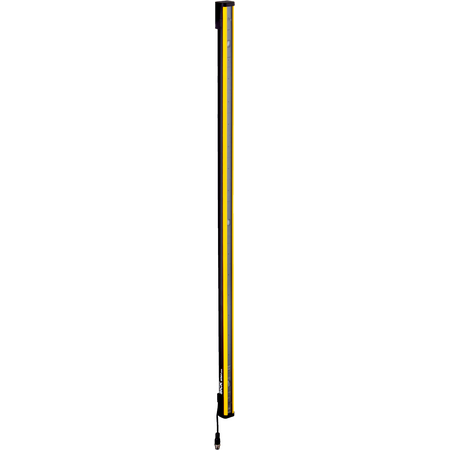

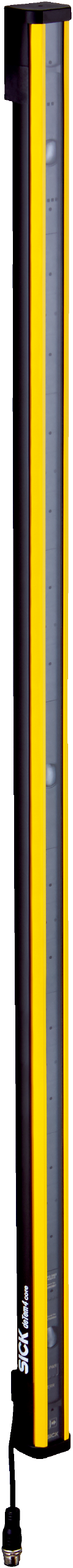

Safety Light Curtain Sender | Type 4 with SIL 3 & PL e | 17m Scanning Range | IP65 & IP67 Rated | by SICK
The Safety Light Curtain Sender is designed for industrial safety applications, featuring a scanning range of up to 17 meters with 3 beams and 400 mm beam separation. Built for reliability, it offers optical synchronization and is compatible with Flexi Loop connectors. With a robust aluminum housing and high ingress protection ratings of IP65 and IP67, this sender is perfect for harsh environments, ensuring compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Safety Light Curtain Sender, Industrial Safety Sensor, deTem4 Core Sender, Optical Safety Sensor
Technical Specifications
- Product version: deTem4 Core
- Functional principle: Sender/receiver
- System part: Sender
- Scanning range category: Low scanning range
- Scanning range: 17 m
- Number of beams: 3
- Beam separation: 400 mm
- Synchronization: Optical synchronization
- System connection: Plug, M12, 5-pin
- Flexi Loop compatible M12 male connector: Yes
- Permitted cable length: 50 m
- Display elements: LEDs
- Protection class: III (IEC 61140)
- Supply voltage VS: 24 V DC (19.2 V DC ... 28.8 V DC)
- Residual ripple: ≤ 10 %
- Power consumption: ≤ 1.44 W (DC)
- Housing cross-section: 31 mm x 34 mm
- Housing material: Aluminum extruded profile
- Front screen material: Polycarbonate, scratch-resistant coating
- Weight: 800 g (± 50 g)
- Cable bend radius stationary position: > 12 x cable diameter
- Cable bend radius flexible use: > 15 x cable diameter
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Ambient operating temperature: –30 °C ... +55 °C
- Storage temperature: –30 °C ... +70 °C
- Air humidity: 15 % ... 95 %, Non-condensing
- Vibration resistance: 5 … 150 Hz, 3.5 mm / 1 g (EN 60068-2-6)
- Shock resistance: 15 g / 6 ms (EN 60068-2-27)
- Type of light: Near-infrared (NIR), invisible
- Dimensions (H x L x W): 34mm x 150mm x 31mm
- Weight: 0.8 kg
Key Features
- Type 4 safety light curtain sender with SIL 3 and PL e safety integrity levels
- Scanning range up to 17 m with 3 beams and 400 mm beam separation
- Optical synchronization and Flexi Loop compatible M12 male connector
- Robust aluminum extruded profile housing with polycarbonate scratch-resistant front screen
- Protection class III with 24 V DC supply voltage and low power consumption (≤ 1.44 W)
- High ingress protection rating IP65 and IP67 for harsh environments
- Wide ambient operating temperature range from -30 °C to +55 °C
- Shock and vibration resistant according to IEC standards
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure compliance with safety standards and optimal performance.
Applications
- Normal industrial environment for safety light curtain sender applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and high ingress protection extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK M4C-SA0340LA10 safety light curtain sender is available for immediate purchase, ideal for industrial safety applications requiring high reliability and compliance with occupational health and safety standards.
