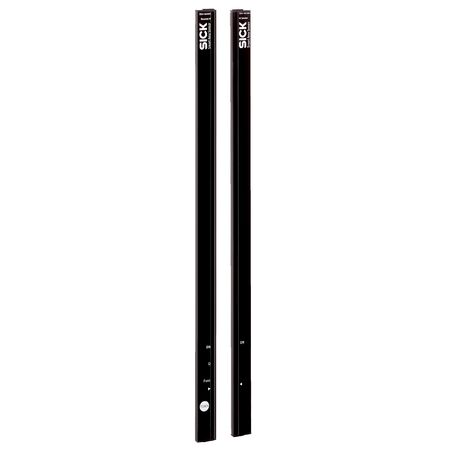

Safety Light Curtain Sensor SAS4-S044N3PS1T00 | 12 Beams | IP65 Rated | Infrared Light | by SICK
The SAS4-S044N3PS1T00 safety light curtain sensor is designed for industrial safety applications, featuring a sender/receiver principle with 12 parallel beams and a minimum detectable object size of 45 mm. With an IP65 rated enclosure for dust and water protection, this sensor is perfect for automation systems requiring reliable object detection and presence sensing, ensuring safety in manufacturing and processing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: 45 mm
- Number of beams: 12
- Detection height: 440 mm
- Parameterization: Teach-in button
- Light source: Infrared light, 950 nm wavelength
- Supply voltage: DC 24 V ± 20%
- Power consumption receiver: ≤ 70 mA
- Output current max: 100 mA
- Switching output: NPN
- Connection type: Cable with M8 male connector, 4-pin
- Enclosure rating: IP65
- Operating temperature: -25°C to +55°C
- Response time: 19 ms
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC standard: EN 60947-5-2
- Dimensions (H x L x W): 512mm x 8mm x 25mm
- Weight: 0.1 kg
Key Features
- Sender/receiver sensor principle with 12 parallel beams
- Minimum detectable object size of 45 mm
- Detection height of 440 mm with slim optical light exit
- Teach-in button for easy parameterization
- NPN switching output with output current max 100 mA
- IP65 rated enclosure for dust and water protection
- LED indication for operational status
- Reverse polarity and short-circuit protected outputs
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems to ensure compliance with safety standards and optimal performance.
Applications
- Industrial safety light curtain for machine safeguarding
- Automation systems requiring object detection and presence sensing
- Safety monitoring in manufacturing and processing plants
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient infrared light source
- Durable PMMA housing reduces material waste through long service life
- Robust design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK SAS4-S044N3PS1T00 safety light curtain sensor is available for immediate purchase, ideal for industrial safety and automation applications.
