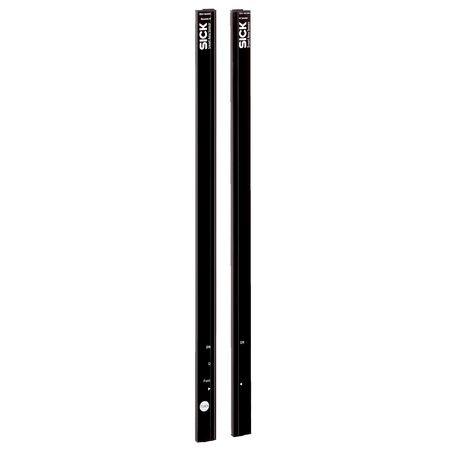

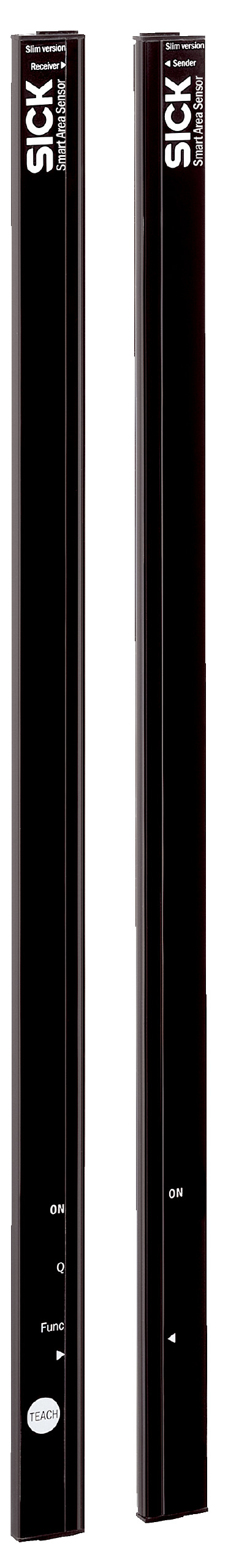

Safety Light Curtain Sensor SAS4-S044P7PS2T0A | 12 Beams | IP65 Rated | Infrared Light Source | by SICK
The Safety Light Curtain Sensor SAS4-S044P7PS2T0A features a sender/receiver principle with 12 parallel beams, ensuring reliable object detection with a minimum detectable size of 45 mm. Ideal for industrial safety and automation applications, this sensor is built with an IP65 rated enclosure for dust and water protection, making it perfect for factory automation and production line safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: 45 mm
- Number of beams: 12
- Detection height: 440 mm
- Parameterization: Teach-in button
- Light source: Infrared light, 950 nm wavelength
- Supply voltage: DC 24 V ± 20%
- Power consumption receiver: ≤ 70 mA
- Output current max: 100 mA
- Switching output: PNP
- Connection type: Cable with M8 male connector, 4-pin
- Enclosure rating: IP65
- Protection class: III
- Response time: 19 ms
- Operating temperature: -25 °C to +55 °C
- Shock resistance: 10 g
- Vibration resistance: 5 g
- Dimensions (H x L x W): 512mm x 12mm x 37mm
- Weight: 0.1 kg
Key Features
- Sender/receiver sensor principle with 12 parallel beams
- Minimum detectable object size of 45 mm
- Detection height of 440 mm
- Teach-in button for easy parameterization
- Infrared light source with 950 nm wavelength
- Supply voltage DC 24 V ± 20%
- Output 1 inactive when light beam interrupted
- IP65 rated enclosure for dust and water protection
- LED indication and optical synchronization
- Reverse polarity and short-circuit protected outputs
- Shock resistance 10 g and vibration resistance 5 g
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct alignment and compliance with safety standards.
Applications
- Industrial safety light curtain for machine safeguarding
- Automation systems requiring object detection and presence sensing
- Factory automation and production line safety
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient infrared light source
- Durable IP65 housing reduces waste by extending product life
- Supports safer automation reducing risk of accidents and environmental hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK SAS4-S044P7PS2T0A Safety Light Curtain Sensor is available now for immediate purchase. Ideal for industrial safety and automation applications.
