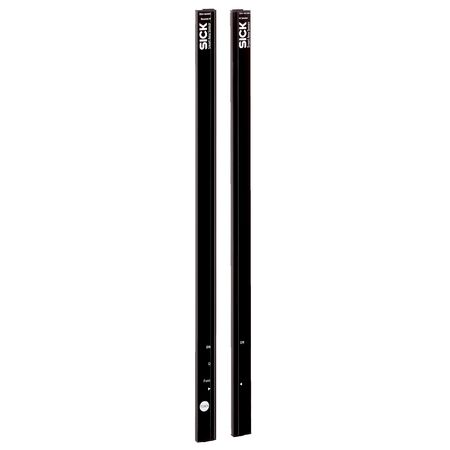

Safety Light Curtain Sensor | 16 Infrared Beams | 600mm Detection Height | IP65 Rated | by SICK
The Safety Light Curtain Sensor features 16 parallel infrared beams with a 600mm detection height, making it ideal for industrial safety and automation applications. With a minimum detectable object size of 45mm and robust PMMA housing rated IP65, this sensor ensures reliable presence detection and machine safeguarding in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: 45 mm
- Number of beams: 16
- Detection height: 600 mm
- Light source: Infrared light, 950 nm wavelength
- Supply voltage: DC 24 V ± 20%
- Power consumption receiver: ≤ 70 mA
- Output current max: 100 mA
- Switching output: PNP
- Response time: 19 ms
- Operating range: 3 m
- Enclosure rating: IP65
- Housing material: PMMA
- Connection type: Cable with M8 male connector, 4-pin
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC: EN 60947-5-2
- Ambient operating temperature: -25 °C to +55 °C
- Dimensions (H x L x W): 672mm x 12mm x 37mm
- Weight: 0.1 kg
Key Features
- 16 parallel infrared light beams with 600 mm detection height
- Minimum detectable object size of 45 mm
- Automatic teach and muting functions deactivated for safety
- Optical synchronization and alignment aid included
- Robust PMMA housing with IP65 enclosure rating
- Short-circuit and reverse polarity protected outputs
- LED indication for operational status
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment and compliance with safety standards.
Applications
- Industrial safety light curtain for machine safeguarding
- Automation systems requiring presence detection
- Access control and perimeter guarding in manufacturing
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient infrared light source
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK SAS4-S060P3PS2W0A safety light curtain sensor is available for immediate purchase, ideal for industrial safety and automation applications.
