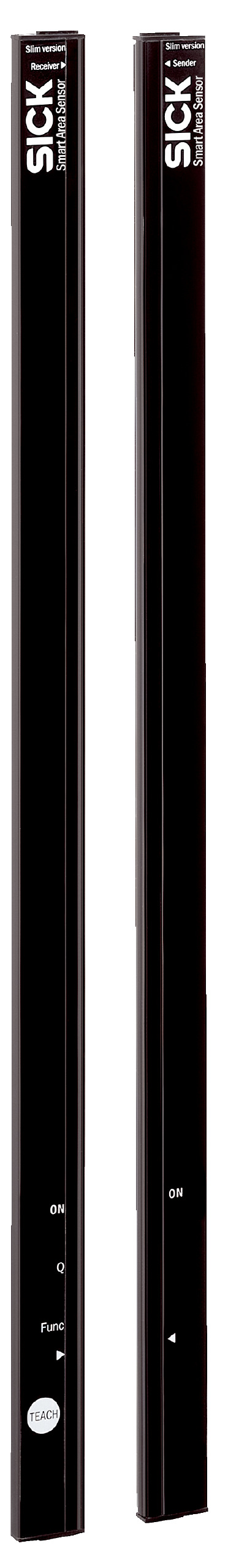

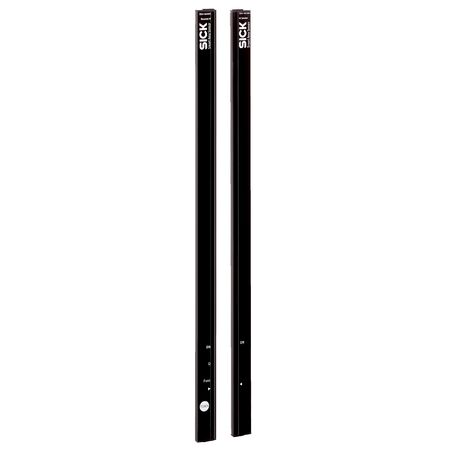

Safety Light Curtain Sensor SAS4-F028P3PS2T00 | 8 Infrared Beams | IP65 Rated | by SICK
The SAS4-F028P3PS2T00 safety light curtain sensor features 8 parallel infrared beams with a 280 mm detection height, making it ideal for industrial safety and automation applications. With a minimum detectable object size of 45 mm and an IP65 rated enclosure, this sensor ensures reliable performance in demanding environments, providing essential protection for personnel and machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: 45 mm
- Number of beams: 8
- Detection height: 280 mm
- Light source: Infrared light, 950 nm wavelength
- Supply voltage: DC 24 V ± 20%
- Power consumption receiver: ≤ 70 mA
- Output current max: 100 mA
- Switching output: PNP
- Response time: 19 ms
- Operating range: 3 m
- Enclosure rating: IP65
- Housing material: PMMA
- Connection type: Cable with M8 male connector, 4-pin
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Ambient operating temperature: -25 °C to +55 °C
- Dimensions (H x L x W): 352mm x 12mm x 37mm
- Weight: 0.1 kg
Key Features
- 8 parallel infrared light beams with 280 mm detection height
- Minimum detectable object size of 45 mm
- Flat optical light exit with parallel beam active
- Teach-in button for easy parameterization
- PNP switching output with output current max 100 mA
- IP65 rated enclosure for dust and water protection
- LED indication for operational status
- Reverse polarity and short-circuit protected outputs
- Shock resistance up to 10 g and vibration resistance up to 5 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems to ensure proper alignment and compliance with safety regulations.
Applications
- Industrial safety light curtain for machine safeguarding
- Automation systems requiring object detection and presence sensing
- Manufacturing lines for personnel protection and access control
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient infrared light source
- Durable PMMA housing reduces material waste and extends product life
- IP65 rating ensures long-term reliability reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK SAS4-F028P3PS2T00 safety light curtain sensor is available for immediate purchase, ideal for industrial safety and automation applications.
