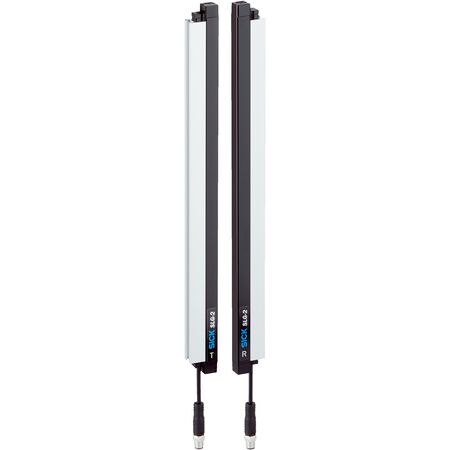

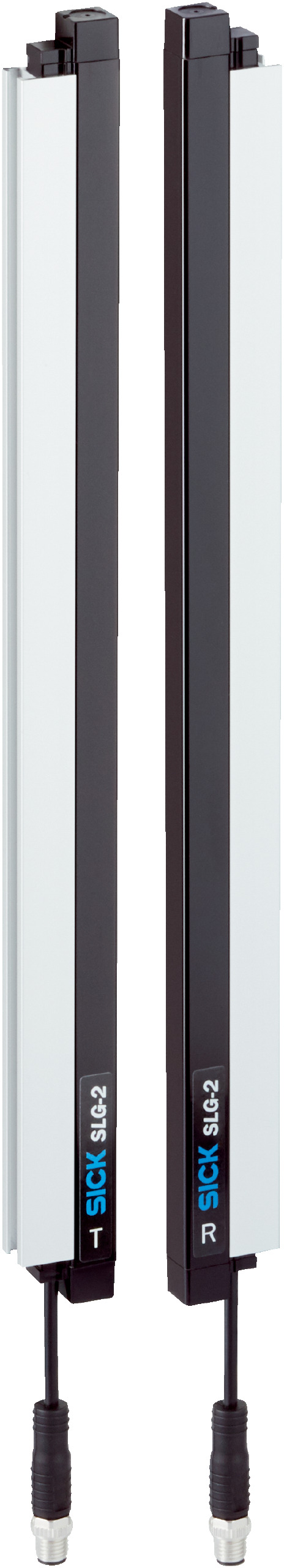

Safety Light Curtain Sensor SLG25S-080SBR11A00 | 800mm Detection Height | 32 Infrared LED Beams | IP65/IP67 Rated | by SICK
The SLG25S-080SBR11A00 safety light curtain sensor is designed for industrial automation safety, featuring a detection height of 800mm and a sensing range from 500mm to 8,500mm. With 32 infrared LED beams and a robust IP65/IP67 rated housing, it ensures reliable machine guarding and access protection in manufacturing environments, making it ideal for robotics safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 799mm x 24mm x 12mm
- Weight: 1.36 kg
Key Features
- Sensing range from 500 mm to 8,500 mm
- Detection height of 800 mm with 32 infrared LED beams
- Minimum detectable object size: 30 mm for parallel beam, ≥16.5 mm for 3x cross beam
- IO-Link communication interface for sensor parameter configuration
- High protection rating IP65 and IP67 for harsh environments
- Robust aluminum and plastic housing with PMMA front screen
- Fast response times with max. response time of 14.6 ms (parallel beam)
- Multiple diagnostic functions including hardware error and temperature warning
- Overcurrent, short-circuit, and reverse polarity protected circuitry
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper alignment and safety compliance.
Applications
- Industrial automation safety
- Machine guarding
- Access protection in manufacturing
- Robotics safety systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Durable IP65/IP67 rated housing extends product lifespan in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK SLG25S-080SBR11A00 safety light curtain sensor is available for immediate purchase, ideal for industrial safety and machine guarding applications.
