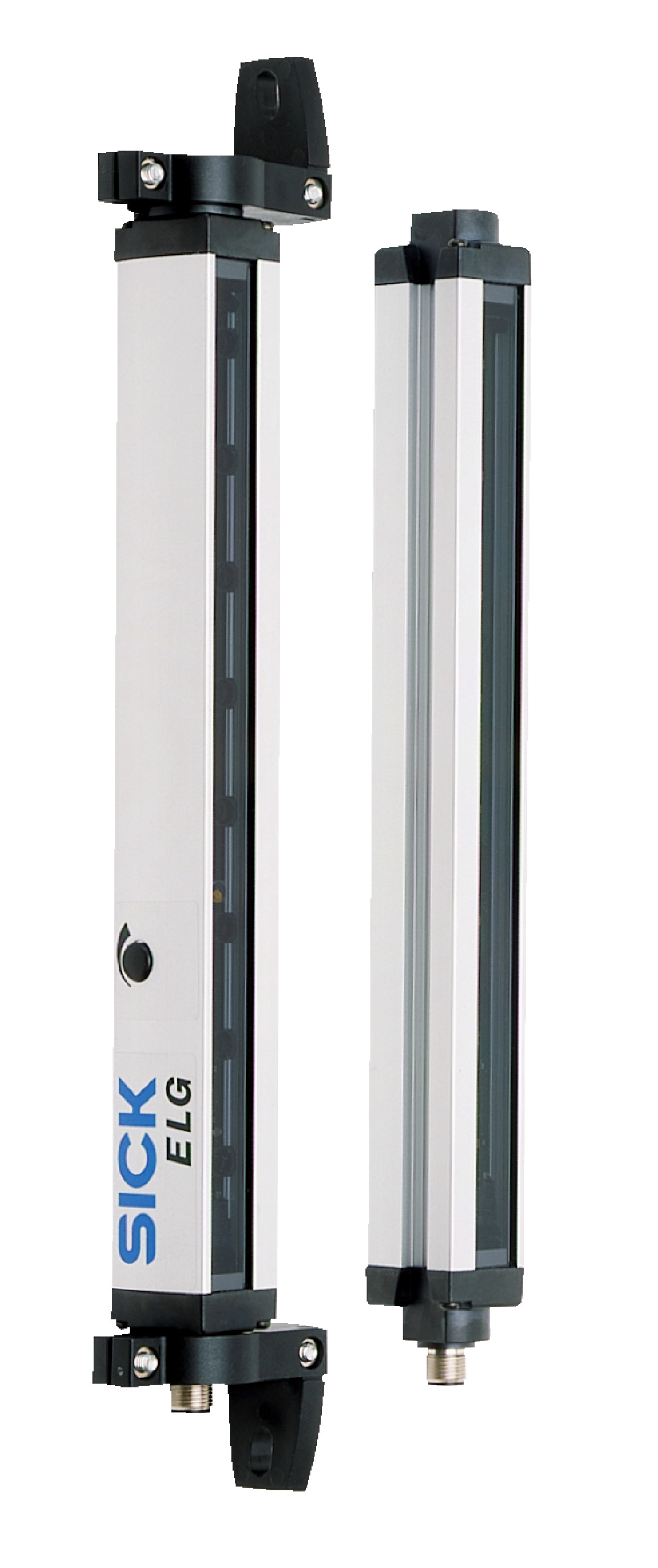

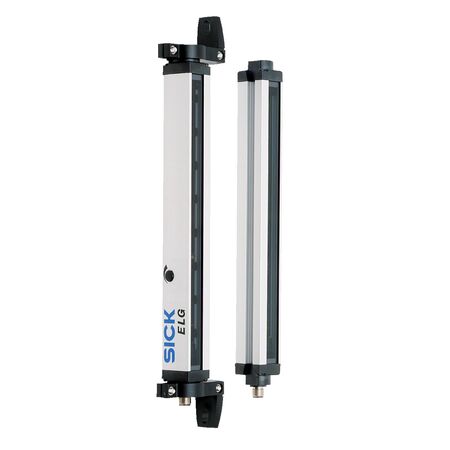

Safety Light Curtain Sensor ELG3-0390P591 | 14 Beams & IP65 Rated | 390mm Detection Height | by SICK
The Safety Light Curtain Sensor ELG3-0390P591 features a sender/receiver principle with 14 parallel beams, ensuring reliable object detection with a minimum detectable size of 35 mm. Ideal for industrial safety and automation applications, this robust sensor offers a detection height of 390 mm and is housed in durable aluminum with an IP65 rating, making it perfect for safeguarding machinery in manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Light Curtain Sensor ELG3-0390P591 | 14 Beams & IP65 Rated | 390mm Detection Height | by SICK
Brand: SICK
SKU: 1042615
Alternatively Known As: Safety light curtain, safety sensor, light barrier, machine safety sensor
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: 35 mm
- Number of beams: 14
- Beam separation: 30 mm
- Detection height: 390 mm
- Wavelength: 880 nm
- Supply voltage: DC 15 V to 30 V
- Power consumption: < 100 mA (sender and receiver)
- Output current max: ≤ 100 mA
- Output type: 2 x PNP, Q dark switching
- Initialization time: 1 second
- Connection: Male M12, 4-pin connector
- Housing material: Aluminum
- Enclosure rating: IP65
- Protection class: III
- Response time: 14 ms
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC standard: EN 60947-5-2
- Dimensions (H x L x W): 466mm x 29mm x 34mm
- Weight: 1.4 kg
Key Features
- Sender/receiver sensor principle with 14 parallel beams
- Minimum detectable object size of 35 mm
- Detection height of 390 mm with 30 mm beam separation
- Operating range up to 2 meters with maximum range of 3 meters
- Robust aluminum housing with IP65 enclosure rating
- LED indication and optical synchronization
- Short-circuit and reverse polarity protected outputs
- Shock resistance of 10 g and vibration resistance of 5 g
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment, electrical connection, and compliance with safety standards.
Applications
- Industrial safety light curtain for machine safeguarding
- Object detection and presence sensing in automated production lines
- Safety monitoring in manufacturing and processing plants
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient operation with low power consumption (<100 mA per sender and receiver)
- Durable aluminum housing extends product life reducing waste
- Complies with RoHS directive limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK ELG3-0390P591 Safety Light Curtain Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
