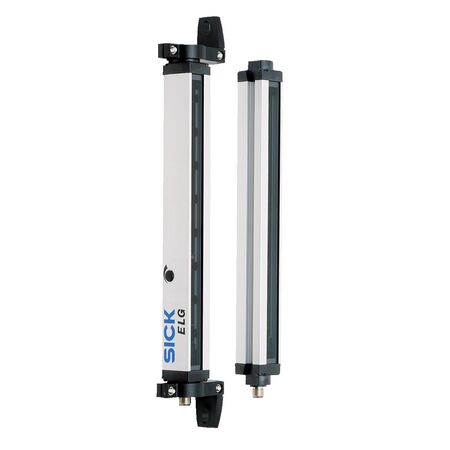

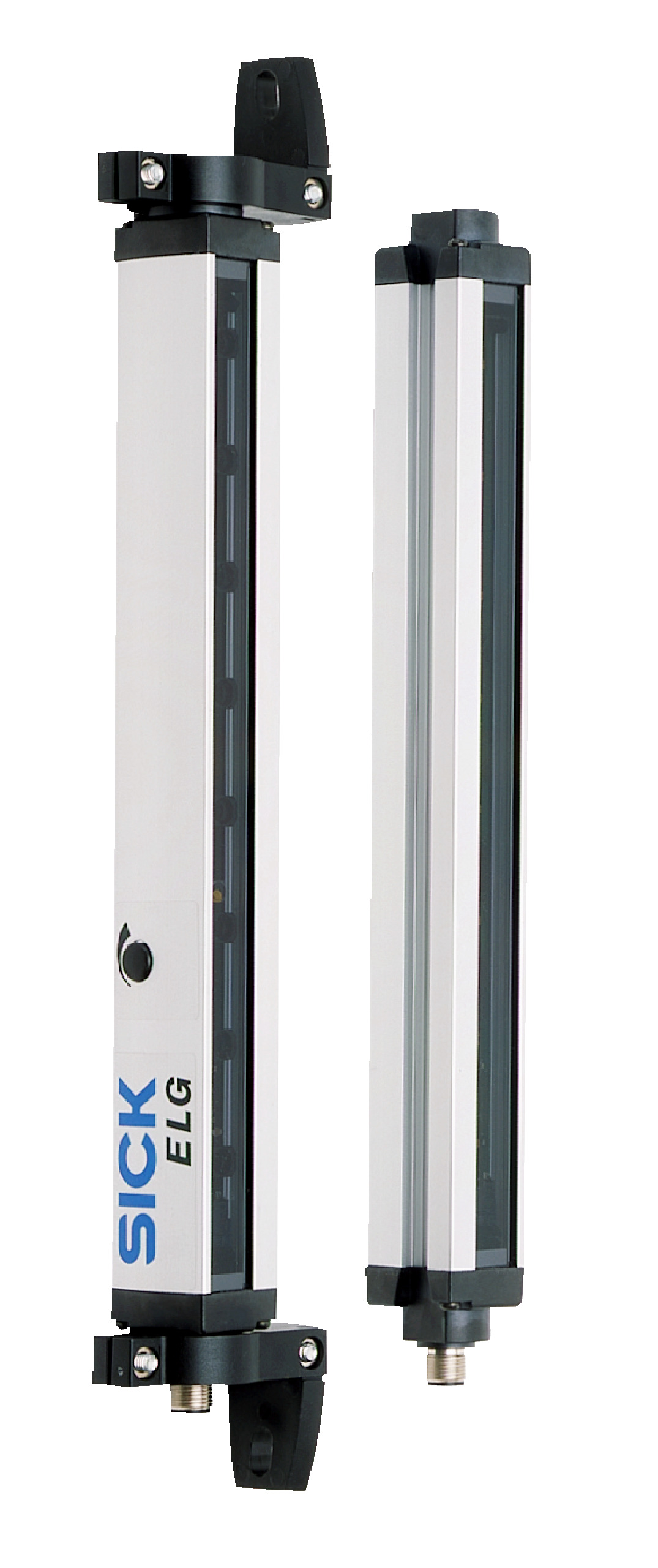

Safety Light Curtain Sensor ELG3-0930P511S34 | 32 Beams & IP65 Rated | 930mm Detection Height | by SICK
The Safety Light Curtain Sensor ELG3-0930P511S34 features a sender/receiver principle with 32 parallel evaluation beams and a 30 mm beam separation, making it ideal for industrial automation safety and machine guarding. With a robust aluminum housing and IP65 enclosure rating, this sensor ensures reliable performance in hazardous environments, providing personnel protection and access control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: 35 mm
- Beam separation: 30 mm
- Number of beams: 32
- Detection height: 930 mm
- Evaluation beams: Parallel beam
- Wavelength: 880 nm
- Supply voltage: DC 15 V to 30 V
- Power consumption sender: < 100 mA
- Power consumption receiver: < 100 mA
- Ripple: < 5 V pp
- Output current max: ≤ 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: 1 s
- Switching output: 2 x PNP
- Output mode: Q dark switching
- Connection type: Male connector M12, 4-pin
- Housing material: Aluminum
- Indication: LED
- Synchronization: Optical
- Enclosure rating: IP65
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Pulse frequency: 250 kHz
- Front screen: PMMA
- Maximum range: 2.1 m
- Minimum range: ≥ 0 mm
- Operating range: 1.5 m
- Response time: 100 ms
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC: EN 60947-5-2
- Ambient light immunity: ≤ 150,000 lx
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 1006mm x 29mm x 34mm
- Weight: 2.6 kg
Key Features
- Sender/receiver sensor principle
- 32 parallel evaluation beams with 30 mm beam separation
- Minimum detectable object size of 35 mm
- Detection height of 930 mm
- Operating range up to 1.5 m with maximum range of 2.1 m
- Optical synchronization and LED indication
- Robust aluminum housing with IP65 enclosure rating
- Reverse polarity and short-circuit protected outputs
- 2 x PNP switching outputs with Q dark switching mode
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and electrical wiring standards to ensure compliance and optimal performance.
Applications
- Industrial automation safety
- Machine guarding
- Personnel protection in manufacturing environments
- Access control in hazardous areas
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with less than 100 mA per sender and receiver
- Durable aluminum housing reduces waste through long product life
- Complies with RoHS directive limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ELG3-0930P511S34 Safety Light Curtain Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
