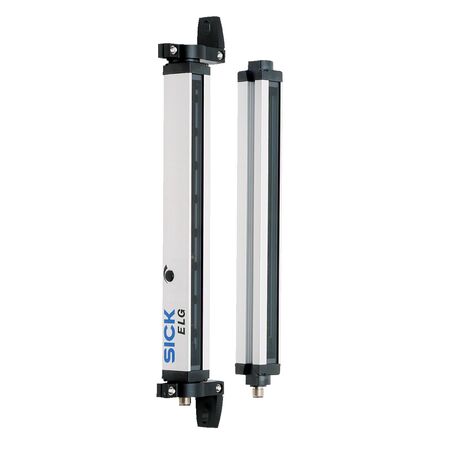

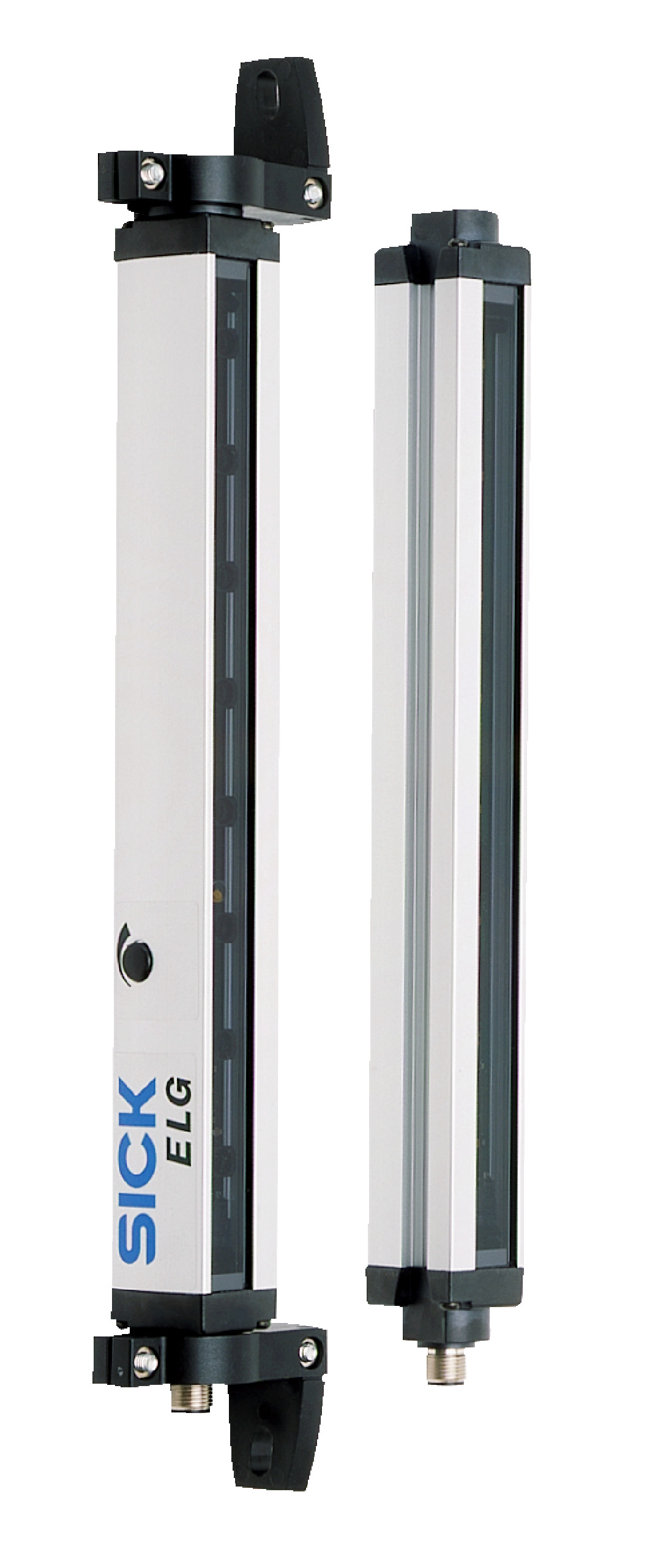

Safety Light Curtain Sensor ELG3-1050P511 | 36 Beams | IP65 Rated | 1,050 mm Detection Height | by SICK
The Safety Light Curtain Sensor ELG3-1050P511 features a sender/receiver principle with 36 parallel beams, ensuring reliable object detection with a minimum detectable size of 35 mm. Designed for industrial safety applications, it operates effectively in temperatures ranging from -25°C to +55°C, making it ideal for machine safeguarding and automation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Light Curtain Sensor ELG3-1050P511 | 36 Beams | IP65 Rated | 1,050 mm Detection Height | by SICK
Brand: SICK
SKU: 1025452
Alternatively Known As: Safety light curtain, safety sensor, machine safety curtain, presence sensor, industrial light barrier
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: 35 mm
- Number of beams: 36
- Beam separation: 30 mm
- Detection height: 1,050 mm
- Wavelength: 880 nm
- Supply voltage: DC 15 V to 30 V
- Power consumption sender: < 100 mA
- Power consumption receiver: < 100 mA
- Output current max: ≤ 100 mA
- Output mode: 2 x PNP, Q dark switching
- Initialization time: 1 second
- Connection type: Male M12, 4-pin connector
- Housing material: Aluminum
- Enclosure rating: IP65
- Protection class: III
- Pulse frequency: 250 kHz
- Front screen material: PMMA
- Maximum range: 3 m
- Operating range: 2 m
- Response time: 100 ms
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC standard: EN 60947-5-2
- Ambient light immunity: ≤ 150,000 lx
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 1126mm x 29mm x 34mm
- Weight: 2.9 kg
Key Features
- Sender/receiver sensor principle with 36 parallel beams
- Minimum detectable object size of 35 mm
- Detection height of 1,050 mm with 30 mm beam separation
- Optical synchronization and LED indication
- Robust aluminum housing with IP65 enclosure rating
- Short-circuit and reverse polarity protected outputs
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment, electrical connection, and compliance with safety standards.
Applications
- Industrial safety light curtain for machine safeguarding
- Object detection and presence sensing in manufacturing lines
- Automation and robotics safety systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces waste and replacement frequency
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ELG3-1050P511 Safety Light Curtain Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
