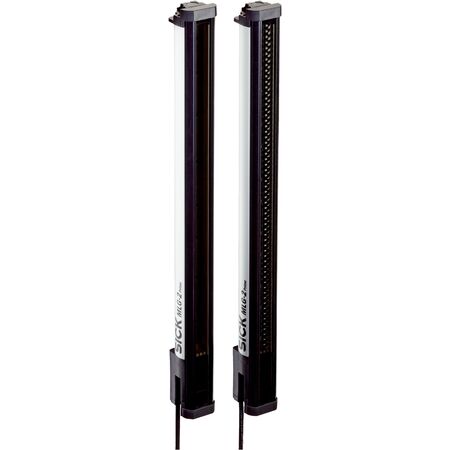

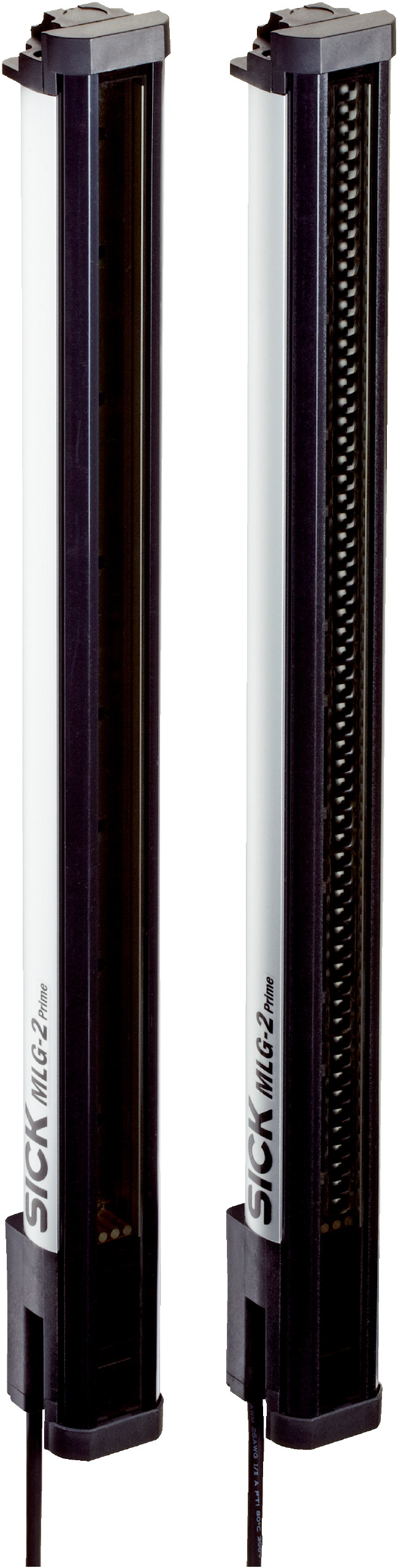

Safety Light Curtain Sensor MLG20S-1480D10803 | 75 Beams | IP65 & IP67 Rated | by SICK
The Safety Light Curtain Sensor MLG20S-1480D10803 features 75 beams with 20 mm beam separation, ensuring precise object detection and height classification. Designed for industrial safety and automation applications, this sensor operates in temperatures from -30°C to +55°C and includes an IO-Link V1.1 interface for seamless integration. Its durable aluminum housing and energy-efficient LED infrared light source make it a reliable choice for enhancing workplace safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device version: Prime - Standard functionality
- Sensor principle: Sender/receiver
- Minimum detectable object: 24 mm
- Number of beams: 75
- Beam separation: 20 mm
- Detection height: 1480 mm
- Light source: LED, Infrared light at 850 nm wavelength
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 58.75 mA
- Power consumption receiver: 135 mA
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: < 1 second
- Switching output: Push-pull PNP/NPN
- Connection type: Plug, M12, 5-pin, 0.22 m cable
- Enclosure rating: IP65, IP67
- Protection class: III
- Response time: 9.7 ms
- Maximum range: 12 m
- Minimum range: ≥ 0.5 m
- Operating range: 8.5 m
- IO-Link V1.1 interface with 38.4 kbit/s data rate
- Cycle time: 6 ms
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation 10-150 Hz
- Ambient operating temperature: -30°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 1480mm x 50mm x 50mm
- Weight: 3.25 kg
Key Features
- Prime - Standard functionality device version
- Sender/receiver sensor principle
- Minimum detectable object size of 24 mm
- 75 beams with 20 mm beam separation
- Optical synchronization
- Presence detection, contamination warning, auto-define height classification
- Cross beam and beam blanking functions
- LED infrared light source with 850 nm wavelength
- Push-pull PNP/NPN switching output
- IP65 and IP67 rated enclosure
- Aluminum housing with PMMA front screen
- Short initialization time under 1 second
- IO-Link V1.1 interface with 38.4 kbit/s data rate
- Operating temperature range from -30°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with safety sensor systems to ensure proper alignment, wiring, and compliance with safety standards.
Applications
- Object detection
- Object recognition
- Height classification
- Object height measurement
- Switching output
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MLG20S-1480D10803 Safety Light Curtain Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
