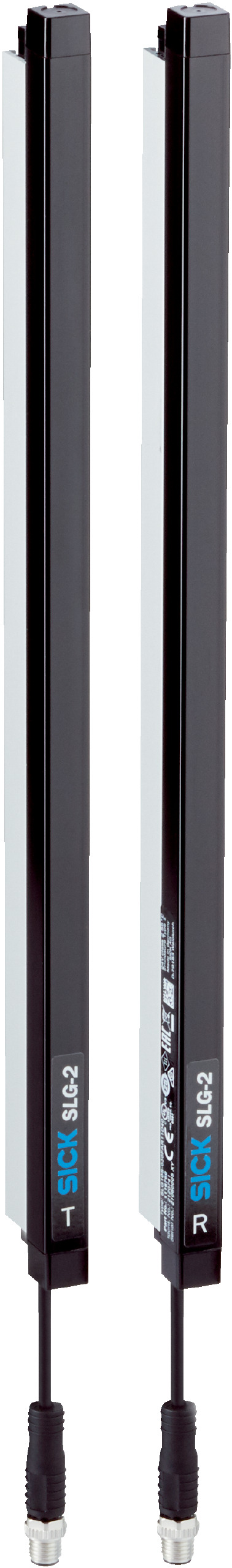

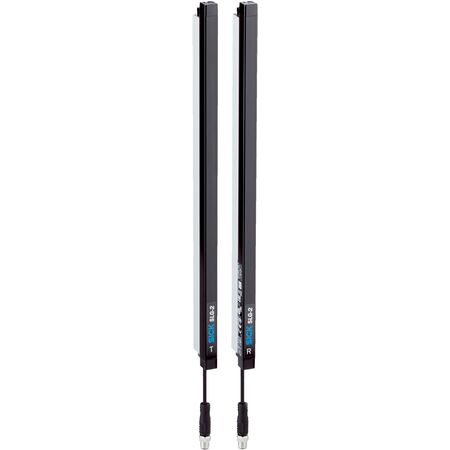

Safety Light Curtain SLG10S-090FAR21A00 | 900mm Detection Height | IP65/IP67 Rated | 90 Infrared Beams | by SICK
The SLG10S-090FAR21A00 safety light curtain is designed for industrial applications, featuring a detection height of 900mm and a sensing range from 440mm to 4900mm. With 90 infrared LED beams and robust IP65/IP67 rated housing, it ensures reliable presence detection and machine safeguarding in harsh environments. Ideal for automation and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 900mm x 24mm x 12mm
- Weight: 1.46 kg
Key Features
- Sensing range from 440 mm to 4900 mm with parallel and cross beam options
- Detection height of 900 mm with 90 infrared LED beams
- Minimum detectable object size: 15 mm² (parallel beam), ≥ 9 mm² (3x cross beam)
- IO-Link communication interface for sensor parameter configuration
- Robust aluminum and plastic housing with PMMA front screen
- High protection rating IP65 and IP67 for harsh environments
- Fast response times with max. response time of 13.7 ms (parallel beam)
- Diagnostic functions including hardware error, temperature warning, and alarm output
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct alignment and safety compliance.
Applications
- Industrial safety light curtain for machine safeguarding
- Object detection and presence sensing in automation
- Safety monitoring in manufacturing and processing lines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient infrared LED light source minimizes power consumption
- Durable IP65/IP67 rated housing protects against environmental damage, extending product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK SLG10S-090FAR21A00 safety light curtain sensor is available for immediate purchase, ideal for industrial safety and automation applications.
