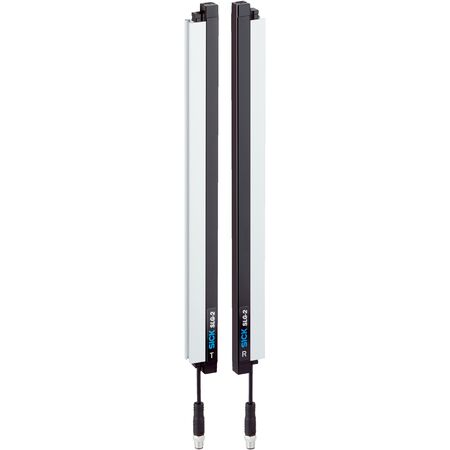

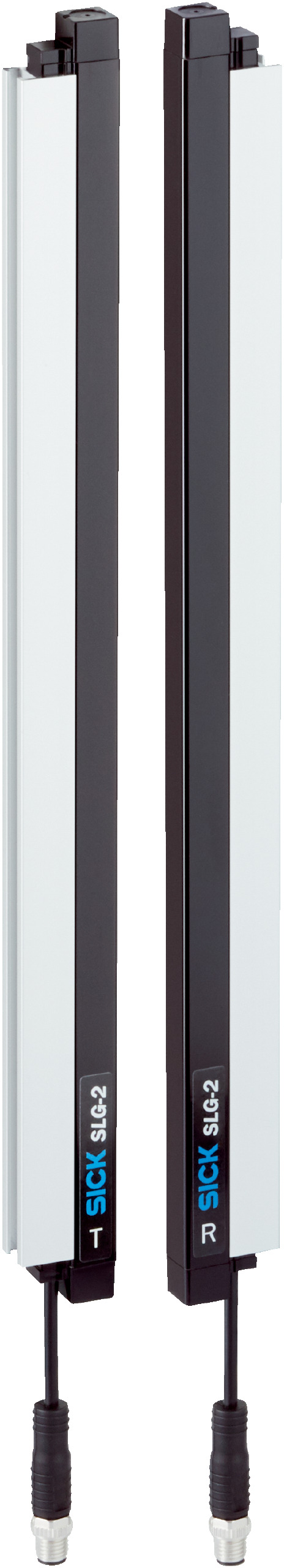

Safety Light Curtain SLG10S-200SAR21A00 | 200 Infrared LED Beams | IP65/IP67 Protection | by SICK
The SLG10S-200SAR21A00 safety light curtain is designed for industrial applications, featuring 200 infrared LED beams and a sensing range of 440 mm to 4,900 mm. With a robust aluminum and plastic housing, it offers high protection ratings of IP65 and IP67, making it ideal for harsh environments. Perfect for machine safeguarding and presence sensing in automated production lines, this sensor ensures safety and compliance in manufacturing settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 2000mm x 24mm x 12mm
- Weight: 2.56 kg
Key Features
- Sender/receiver functional principle with 200 infrared LED beams
- Sensing range from 440 mm to 4,900 mm with parallel and cross beam options
- Detection height of 2,000 mm with 10 mm beam separation
- Minimum detectable object size: 15 mm² (parallel beam), ≥ 9 mm² (3x cross beam)
- IO-Link interface for sensor parameter configuration and Smart Task functions
- Robust aluminum and plastic housing with PMMA front screen
- High protection rating IP65 and IP67 for harsh environments
- Fast response times with max. 28.9 ms (parallel beam) and 53.7 ms (cross beam)
- Diagnostic functions including hardware error, temperature warning, and communication status
- Overvoltage and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment, configuration, and compliance with safety standards.
Applications
- Industrial safety light curtain for machine safeguarding
- Object detection and presence sensing in automated production lines
- Safety monitoring in manufacturing and processing plants
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long LED service life of approximately 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low power consumption for sender and receiver
- Durable IP65/IP67 rated housing minimizes environmental damage and extends product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK SLG10S-200SAR21A00 safety light curtain sensor is available for immediate purchase, ideal for industrial safety and automation applications.
