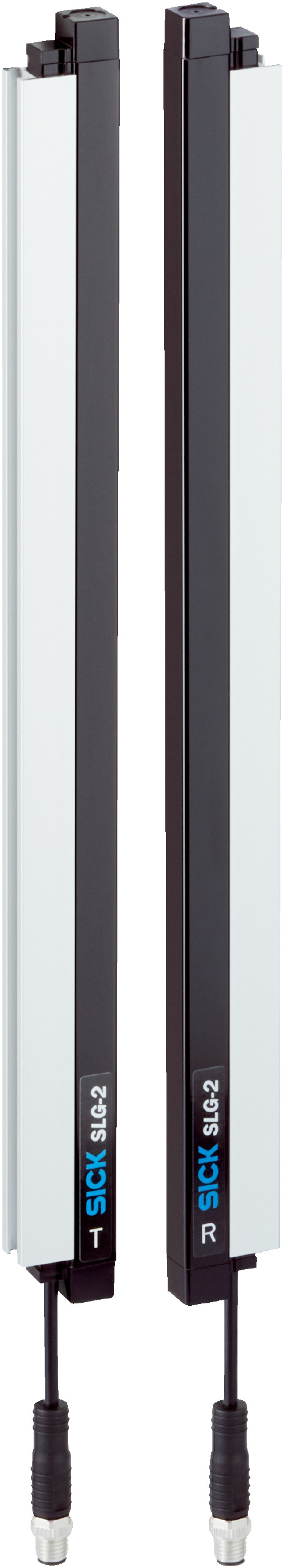

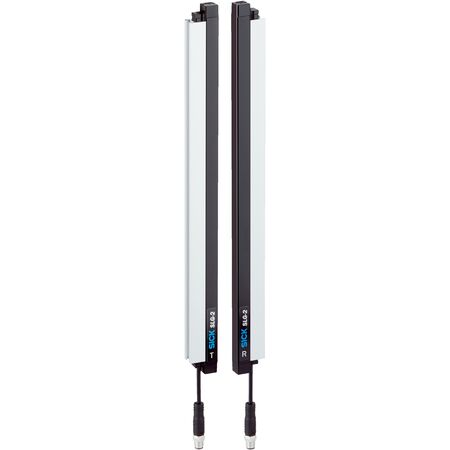

Safety Light Curtain SLG25S-220SBR21A00 | 2200mm Detection Height | 88 Infrared Beams | IP65/IP67 Rated | by SICK
The SLG25S-220SBR21A00 safety light curtain is designed for industrial applications, featuring a detection height of 2200mm and 88 infrared LED beams for precise presence detection. With a robust IP65/IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for machine safeguarding and automation systems. Its IO-Link communication interface allows for easy sensor parameter configuration, enhancing operational efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 2200mm x 24mm x 12mm
- Weight: 2.76 kg
Key Features
- Sensing range from 500 mm to 8,500 mm with parallel and cross beam options
- Detection height of 2,200 mm with 88 infrared LED beams
- IO-Link communication interface for sensor parameter configuration
- Robust aluminum and plastic housing with PMMA front screen
- High ambient light immunity up to 50,000 lx
- IP65 and IP67 rated enclosure for harsh environments
- Fast response times with max 33.7 ms (parallel beam) and 66.1 ms (cross beam)
- Multiple diagnostic functions including hardware error and communication state monitoring
- Overcurrent, short-circuit, and reverse polarity protected outputs
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper alignment, configuration, and compliance with safety standards.
Applications
- Industrial safety light curtain for machine safeguarding
- Automation systems requiring object detection and presence sensing
- Factory automation and process control environments
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long LED service life of approximately 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Durable IP65/IP67 rated housing extends product lifespan in industrial environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK SLG25S-220SBR21A00 safety light curtain sensor is available for immediate purchase, ideal for industrial safety and automation applications.
