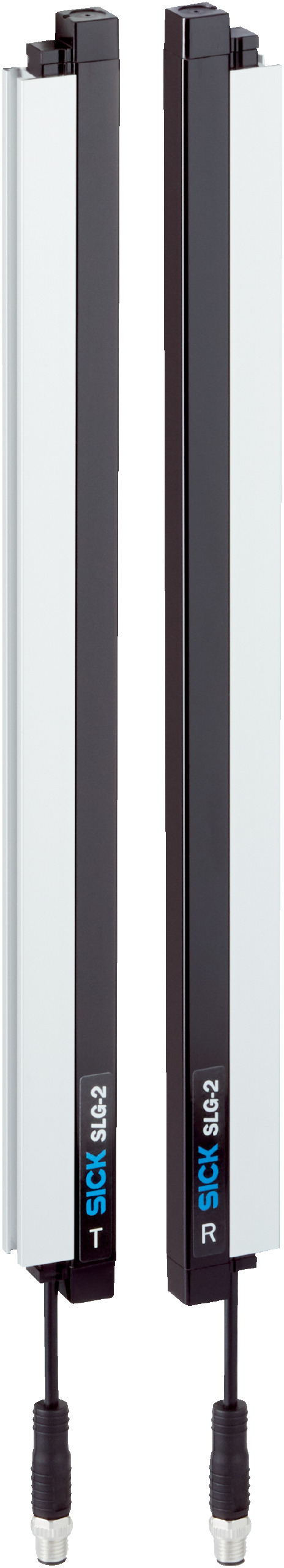

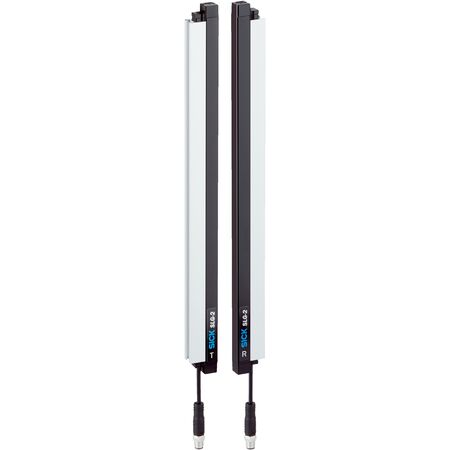

Safety Light Curtain SLG50S-200SAR11A00 | 440mm to 4900mm Sensing Range | IP65 & IP67 Rated | by SICK
The SLG50S-200SAR11A00 safety light curtain is designed for industrial safety applications, featuring a sensing range from 440 mm to 4,900 mm and a detection height of 2,000 mm with 40 infrared LED beams. Built for machine safeguarding and perimeter guarding, it offers high ambient light immunity and robust aluminum housing, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 2000mm x 24mm x 12mm
- Weight: 2.56 kg
Key Features
- Includes 1 sender, 1 receiver, Quick Start Guide, and safety notes
- Functional principle: sender/receiver
- Sensing range from 440 mm to 4,900 mm
- Detection height of 2,000 mm with 40 infrared LED beams
- Minimum detectable object size: 55 mm (parallel beam), ≥29 mm (3x cross beam)
- Optical synchronization with 2 beams
- IO-Link interface for sensor parameter configuration and Smart Task functions
- High ambient light immunity up to 50,000 lx
- Robust aluminum and plastic housing with PMMA front screen
- Protection rating IP65 and IP67
- Operating temperature range from -25 °C to +55 °C
- Digital output push-pull PNP/NPN with max 100 mA output current
- Short-circuit and overcurrent protected outputs
- Diagnostic functions including hardware error, temperature warning, and communication state monitoring
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper alignment, configuration, and compliance with safety standards.
Applications
- Industrial safety light curtain applications
- Machine safeguarding and perimeter guarding
- Automation and manufacturing safety systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient infrared LED technology minimizes power consumption
- Robust design reduces environmental impact through durability and reliability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK SLG50S-200SAR11A00 safety light curtain is available for immediate purchase, ideal for industrial safety and automation applications.
