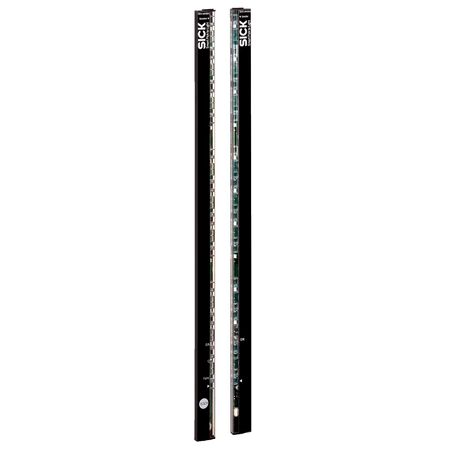

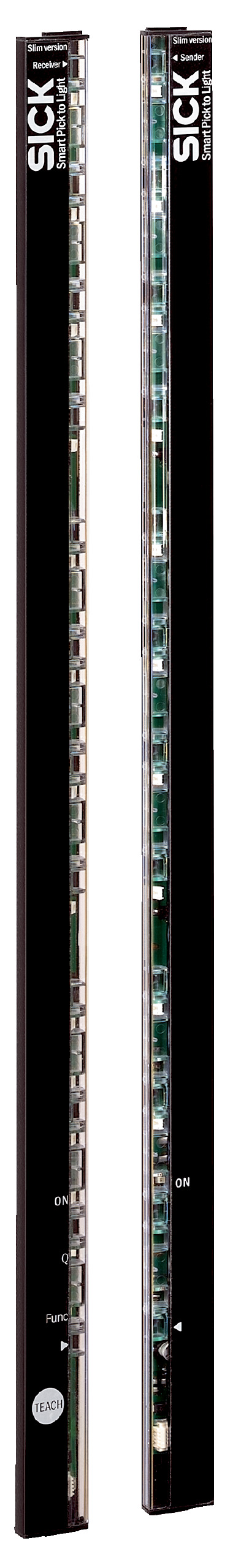

Safety Light Curtain SPL-F120PPC2W04 | 4 Infrared Beams | IP65 Rated | 120 mm Detection Height | by SICK
The SPL-F120PPC2W04 safety light curtain is designed for industrial applications, featuring 4 parallel infrared beams with a 120 mm detection height and a minimum detectable object size of 45 mm. With an IP65 rated housing for dust and water protection, this sensor ensures personnel safety in hazardous areas and is perfect for machine safeguarding and automation lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Sender/receiver
- Number of beams: 4
- Detection height: 120 mm
- Minimum detectable object: 45 mm
- Beam separation: 40 mm
- Light source: Infrared light, 950 nm wavelength
- Supply voltage: DC 24 V ± 20%
- Power consumption receiver: ≤ 50 mA
- Output current max: ≤ 100 mA
- Switching output: PNP
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: 1 s
- Connection type: Cable with M8 male connector, 4-pin
- Housing material: PMMA with aluminum stabilizer
- Enclosure rating: IP65
- Protection class: III
- Response time: 38 ms
- Operating range: 1.5 m
- Maximum range: 3 m
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC standard: EN 60947-5-2
- Ambient operating temperature: -25°C to +55°C
- Storage temperature: -25°C to +70°C
- Dimensions (H x L x W): 192mm x 12mm x 37mm
- Weight: 0.1 kg
Key Features
- 4 parallel infrared light beams with 120 mm detection height
- Minimum detectable object size of 45 mm
- Automatic teach function for easy setup
- PNP switching output with output current up to 100 mA
- IP65 rated housing for dust and water protection
- Optical synchronization and LED indication
- Robust PMMA housing with aluminum stabilizer
- Short response time of 38 ms for parallel beam coded version
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems to ensure compliance with safety standards and optimal performance.
Applications
- Industrial safety light curtain for machine safeguarding
- Object detection in automation and manufacturing lines
- Presence detection for personnel safety in hazardous areas
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient infrared light source
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK SPL-F120PPC2W04 safety light curtain sensor is available for immediate purchase, ideal for industrial safety and automation applications.
