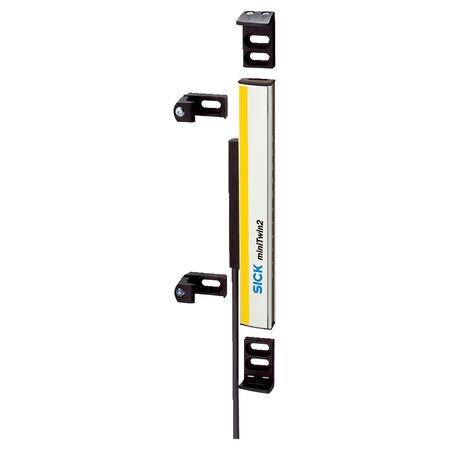

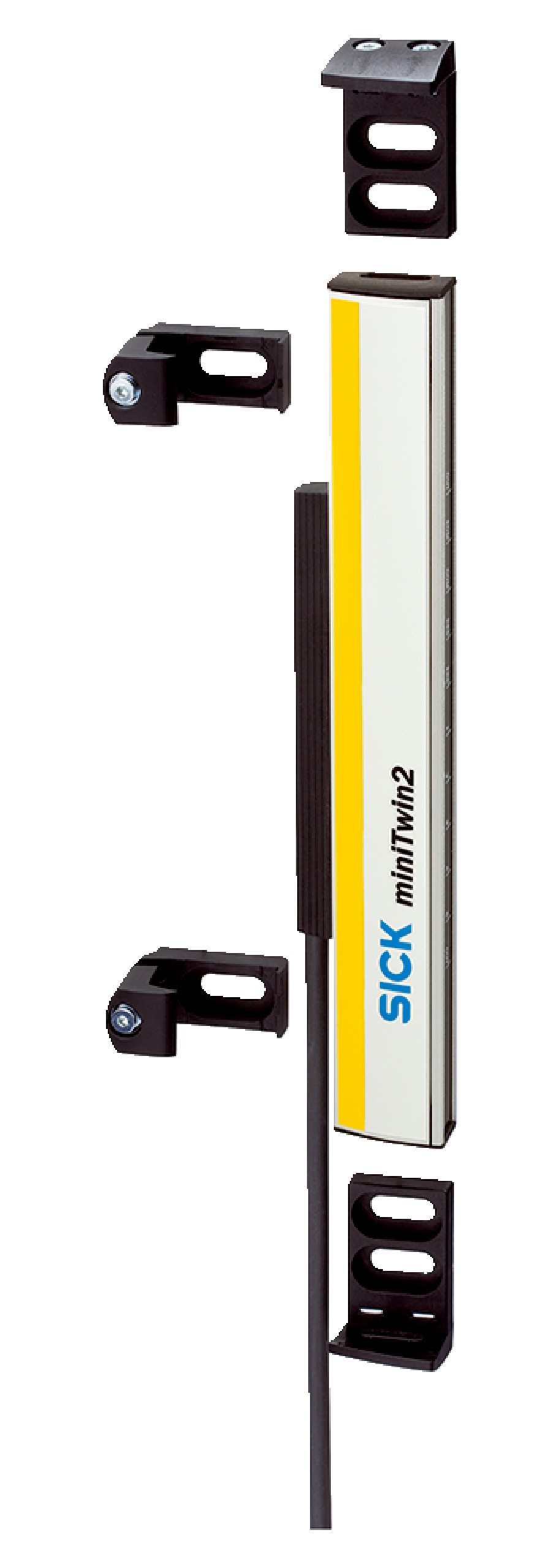

Safety Light Curtain Twin-Stick | 14 mm Resolution | 0-8 m Scanning Range | IP65 Rated | by SICK
The Safety Light Curtain Twin-Stick is designed for industrial safety applications, featuring a 14 mm resolution and a scanning range of 0 to 8 meters. Ideal for protecting personnel in hazardous areas, this robust curtain operates in temperatures from -20 °C to +55 °C and includes optical synchronization for seamless integration. With a protective field height of 540 mm and a response time of ≤ 14 ms, it ensures reliable safety in manufacturing and automation environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Resolution: 14 mm
- Scanning range: Minimum 0 m to 6 m, Typical 0 m to 8 m
- Protective field height: 540 mm
- Response time: ≤ 14 ms
- Synchronization: Optical without separate synchronization
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (EN ISO 13849)
- Test rate: 58 per second
- Performance level: PL c (EN ISO 13849)
- PFHD: 2.4 x 10^-8
- Mission time: 20 years
- Safe state on fault: At least one OSSD off
- Output type: PNP semiconductors, short-circuit protected, cross-circuit monitored
- Operating voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 3 A
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -20 °C to +55 °C
- Housing material: Aluminum alloy ALMGSI 0.5
- Weight: 195 g
- Dimensions (H x L x W): 540mm x 32mm x 15mm
- Weight: 0.195 kg
Key Features
- Twin-Stick system part for flexible safety solutions
- MiniTwin2 usable as standalone or in 2- or 3-device cascades
- Mounting options with C-fix or L-fix brackets
- 14 mm resolution with scanning range from 0 m to 8 m
- Protective field height of 540 mm
- Response time ≤ 14 ms
- Optical synchronization without separate synchronization device
- Restart interlock and external device monitoring (EDM) included
- Automatic beam coding
- LED display elements for status indication
- Short-circuit protected, cross-circuit monitored PNP semiconductor outputs
- IP65 rated enclosure for robust environmental protection
- Operating temperature range from -20 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtain systems and electrical safety standards.
Applications
- Industrial safety for machinery and automation
- Protection of personnel in hazardous areas
- Use in manufacturing and production lines requiring safety light curtains
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption
- Durable aluminum alloy housing reduces material waste
- Long mission time of 20 years reduces replacement frequency
Warranty Information
Warranty details available upon request from manufacturer; typically includes coverage against manufacturing defects.
Available Now
The SICK C2MT-05414BBC03DE0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial safety and personnel protection applications.
