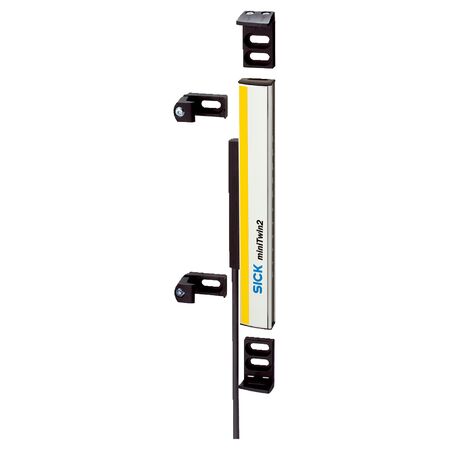

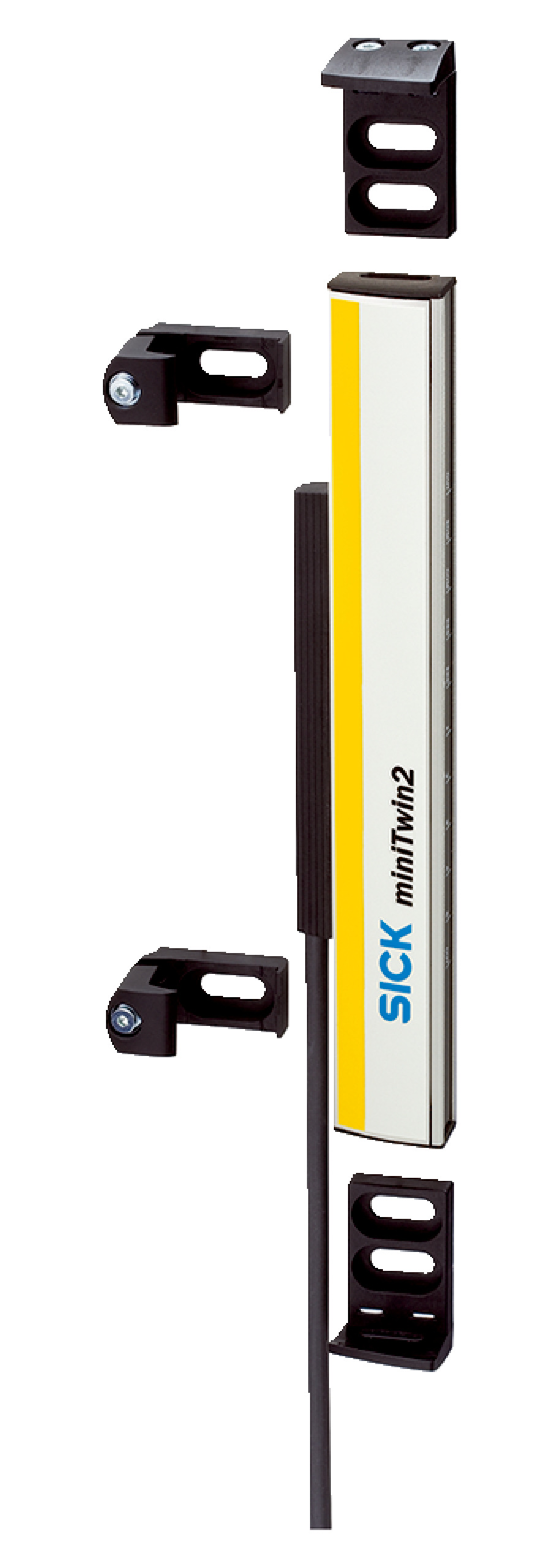

Safety Light Curtain Twin-Stick | 14 mm Resolution | 1200 mm Protective Field Height | IP65 Rated | by SICK
The Safety Light Curtain Twin-Stick is designed for industrial safety, featuring a 14 mm resolution and a protective field height of 1200 mm. With a scanning range of up to 8 m and an impressive response time of ≤ 17 ms, it ensures reliable protection for personnel in hazardous areas. Ideal for machinery and automation applications, this light curtain is built for durability and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Resolution: 14 mm
- Scanning range minimum: 0 m to 6 m
- Scanning range typical: 0 m to 8 m
- Protective field height: 1,200 mm
- Response time: ≤ 17 ms
- Synchronization: Optical, without separate synchronization
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (EN ISO 13849)
- Test rate (internal test): 58 /s
- Maximum demand rate: 34 min⁻¹ (EN ISO 13849)
- Performance level: PL c (EN ISO 13849)
- PFHD: 2.4 x 10⁻⁸ (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Safe state in fault: At least one OSSD OFF
- System connection: Male connector M12, 5-pin
- Cable length: 700 mm
- Permitted cable length: ≤ 20 m
- Configuration method: Hard wired
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Ripple: ≤ 10%
- Power consumption: ≤ 3 A
- Output type: PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state voltage: 24 V DC (VS – 2.25 V DC to VS)
- OFF state voltage: ≤ 2 V DC
- Current capacity per OSSD: ≤ 300 mA
- Housing cross-section: 15 mm x 32 mm
- Housing material: Aluminum alloy ALMGSI 0.5
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wave length: 850 nm
- Dimensions (H x L x W): 1200mm x 32mm x 15mm
- Weight: 0.42 kg
Key Features
- Twin-Stick system part
- MiniTwin2 usable as standalone or last guest in 2- or 3-device cascade
- Mounting with C-fix or L-fix bracket
- 14 mm resolution
- Scanning range typical 0 m to 8 m
- Protective field height of 1,200 mm
- Response time ≤ 17 ms
- Optical synchronization without separate synchronization
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- Male connector M12, 5-pin system connection
- Hard wired configuration with LED display elements
- Protection class III
- Supply voltage 24 V DC (19.2 V DC to 28.8 V DC)
- PNP semiconductor output signal switching devices (OSSDs), short-circuit protected
- Housing made of aluminum alloy ALMGSI 0.5
- Enclosure rating IP65
- Operating temperature range -20 °C to +55 °C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure compliance with safety standards and proper system integration.
Applications
- Industrial safety for machinery and automation
- Protection of personnel in hazardous areas
- Use in standalone or cascade device configurations
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing reduces material waste
- Low power consumption (≤ 3 A) supports energy efficiency
- Long mission time of 20 years reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C2MT-12014BBC03FE0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial safety and machinery protection applications.
