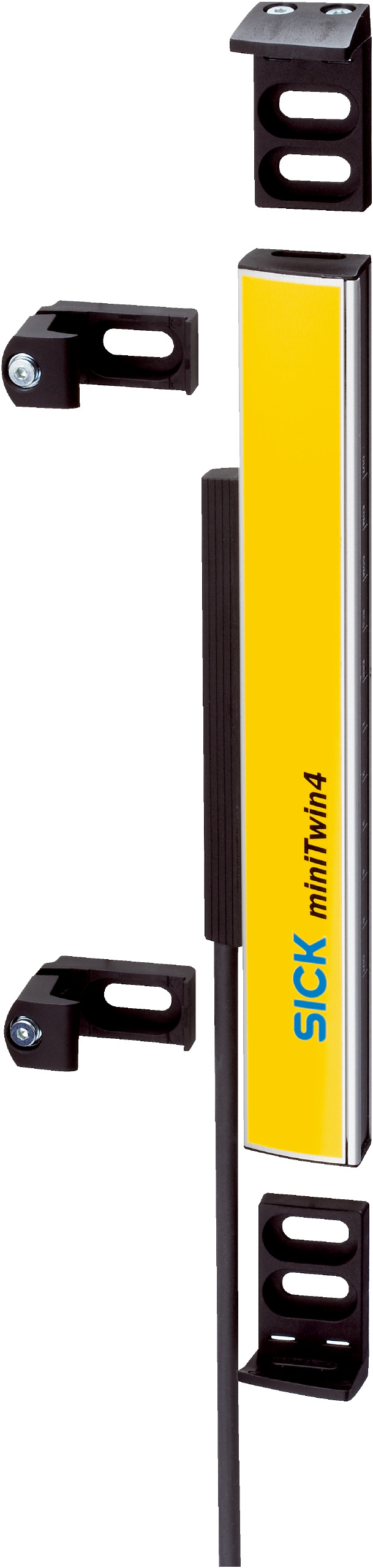

Safety Light Curtain Twin-Stick | 14 mm Resolution | 720 mm Protective Field Height | IP65 Rated | by SICK
The Safety Light Curtain Twin-Stick is designed for industrial safety, featuring a 14 mm resolution and a protective field height of 720 mm. With a scanning range of up to 5 m and an optical synchronization system, it ensures reliable protection for personnel in hazardous areas. Built for durability with an aluminum housing and IP65 rating, this safety sensor is perfect for machinery and automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Resolution: 14 mm
- Scanning range: Typical 0 m to 5 m
- Protective field height: 720 mm
- Response time: ≤ 14 ms
- Synchronization: Optical without separate synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 4.3 x 10^-9 (EN ISO 13849)
- Mission time: 20 years
- Safe state on fault: At least one OSSD OFF
- System connection: Male connector M12, 5-pin
- Cable length: 700 mm
- Power supply: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 3 A
- Output type: PNP semiconductors, short-circuit protected
- Housing material: Aluminum alloy ALMGSI 0.5
- Enclosure rating: IP65
- Operating temperature: -20 °C to +55 °C
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Dimensions (H x L x W): 720mm x 32mm x 15mm
- Weight: 0.255 kg
Key Features
- Twin-Stick system part
- MiniTwin4 usable as standalone or last guest in 2- or 3-device cascade
- Mounting with C-fix or L-fix bracket
- 14 mm resolution
- Scanning range typical 0 m to 5 m
- Protective field height of 720 mm
- Response time ≤ 14 ms
- Optical synchronization without separate synchronization
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- Male connector M12, 5-pin system connection
- Hard wired configuration with LED display elements
- Protection class III
- Supply voltage 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption ≤ 3 A
- PNP semiconductor output signal switching devices, short-circuit protected and cross-circuit monitored
- Housing made of aluminum alloy ALMGSI 0.5
- Enclosure rating IP65
- Operating temperature range -20 °C to +55 °C
- Vibration and shock resistant
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with safety light curtain systems and electrical safety standards.
Applications
- Industrial safety for machinery and automation
- Protection of personnel in hazardous areas
- Use in standalone or cascade device configurations
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing reduces material waste
- Low power consumption enhances energy efficiency
- Long mission time of 20 years reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK C4MT-07214ABB03FE0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial safety and automation applications.
